Pneumatic Cylinders

SMC MGPL25-150Z cyl, compact guide, ball brg, MGP COMPACT GUIDE CYLINDER

Plate Cylinder, Double Acting, Single Rod MU Series (MDUB40-75DMZ-A93)

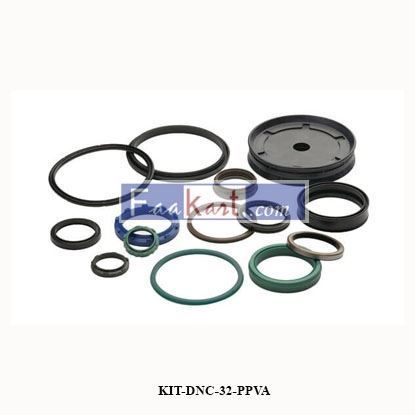

DNC-32-PPV/A FESTO CYLINDER SEAL KIT, Shaft Diameter: 12

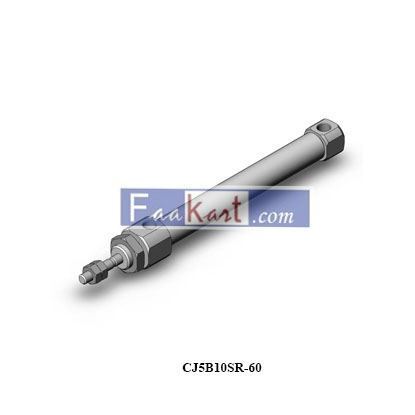

SMC CJ5B10SR-60 cyl, stainless steel, CJ5 STAINLESS STEEL CYLINDER

Norgren PRA/882032/MIB/M4/25 CYLINDER, DA-P.PROFILE CLEAN LINE

· Shortened guide rod. · Saves space. · By reducing the guide rod length by a maximum 22 mm, the machining required to create space between the bottom of the cylinder body and the equipment is reduced. · Round auto switches and strong magnetic field resistant auto switches can be directly mounted without spacers. · 4 types of mounting are possible. · Piping from either direction.

SMC MGPM32-50A-M9BAZ 32mm mgp slide bearing, MGP COMPACT GUIDE CYLINDER

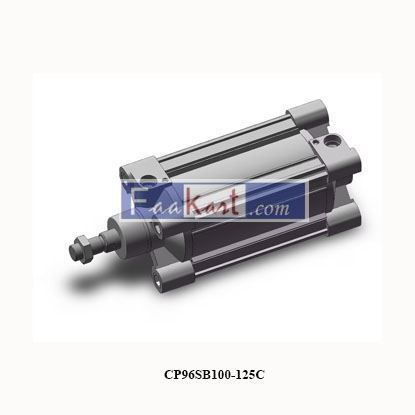

SMC CP96SB100-125C c(p)96 cylinder, C95/C96 TIE-ROD CYLINDER ISO Standard (15552) Compliant Air Cylinder, Standard Type, Double Acting, Single/Double Rod, CP96 Series (CP96SB100-125C)

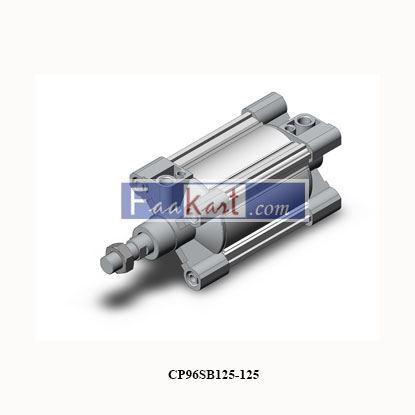

SMC CP96SB125-125 c(p)96 base cylinder, C95/C96 TIE-ROD CYLINDER Air Cylinder - ISO Standard Compliant, With Cushion, CP96 Series (CP96SB125-125)

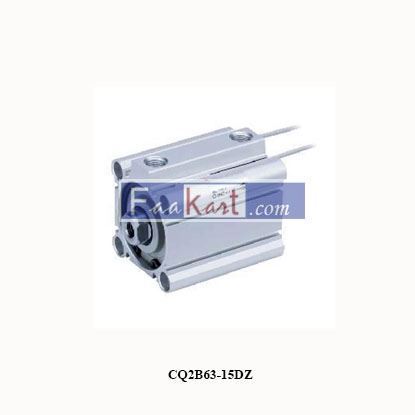

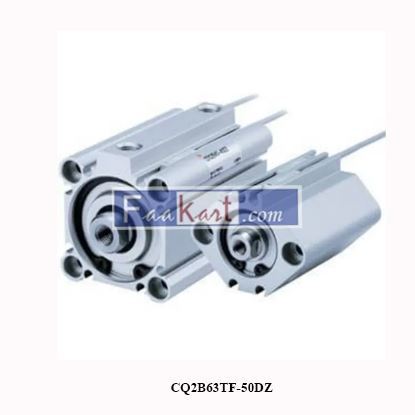

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work. Double acting, single rod, compact cylinder Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Standard stroke range *: 5 to 100 Port threads: M *; Rc, NPT or G * Auto switch capable

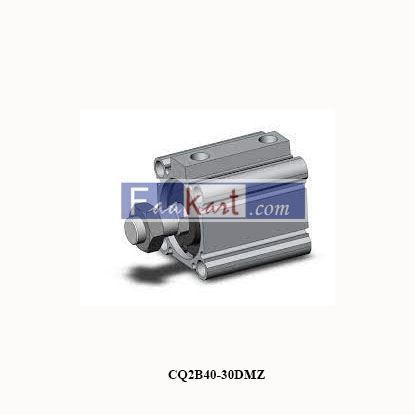

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work. Double acting, single rod, compact cylinder Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Standard stroke range *: 5 to 100 Port threads: M *; Rc, NPT or G * Auto switch capable

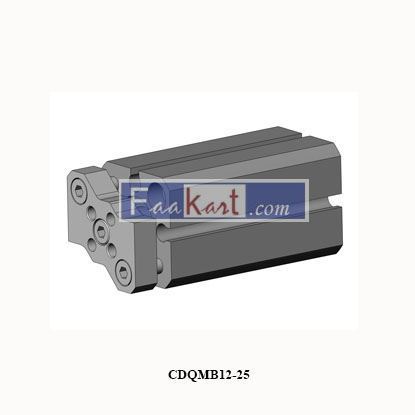

The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less. Series CQM allows a workpiece to be mounted directly to the tooling plate. Auto switches are mountable/removable even when the plate is retracted. Guide rod type compact cylinder Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100 Standard strokes *: 5 to 100 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less

Pneumatic connection G3/4 Stroke 1mm Operating Pressure 0,6 bar ... 10 bar Mounting Position optional Weight 15,493g

Pneumatic connection G1/8 Stroke 1mm Operating Pressure 1 bar ... 10 bar Mounting Position optional

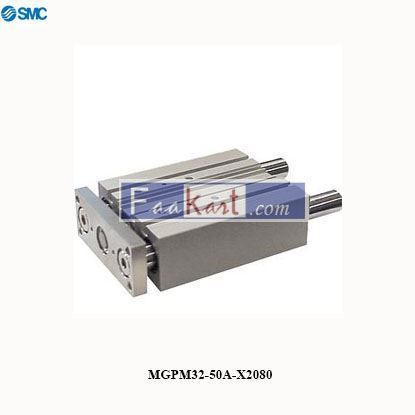

SMC MGPM32-50AZ-X2080 32mm mgp slide bearing, MGP COMPACT GUIDE CYLINDER

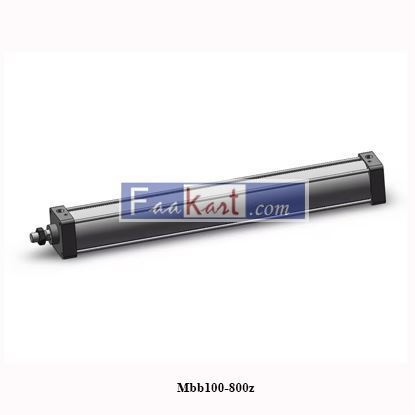

The MB series medium duty tie rod cylinder offers an improved design that enhances cylinder operation and ease of use. The standard air cushion utilizes a floating cushion seal to eliminate piston rod bouncing. The cushion volume has been elevated permitting about 30% more allowable kinetic energy absorption. The port and captive cushion adjustment valve are located on the same side of cap for heightened access. The MB series is available with many standard options, which include stroke adjustment, tandem, high/low temperature seals, heavy rod scraper, non-rotating rod, double rod and many more. End lock type air cylinder 6 bore sizes available: 32mm ~ 100mm 7 mounting styles available Double acting , single rod Auto switch capable

Pin Contact Silver Crimp 8 AWG Power, Stamped

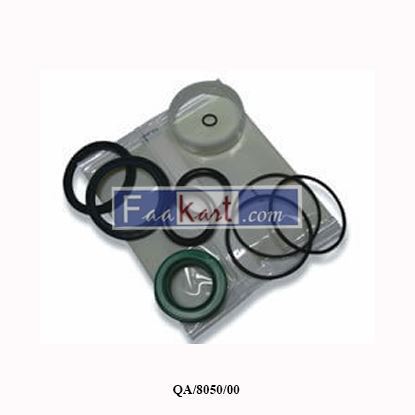

Best Quality SEAL KITS for Pneumatic Cylinder of all kinds. Make: IMI NORGREN, Pneumatic Seal Kit for Cylinder Bore Diameter: 50 mm

One third the basic length of a corresponding ISO/VDMA model Low friction, long life seal design Fully non-corrodible specification Standard magnetic piston for full control system versatility Medium: Compressed Air Port Size: G1/8 Stroke length: 50 mm Cylinder diameter: 40 mm

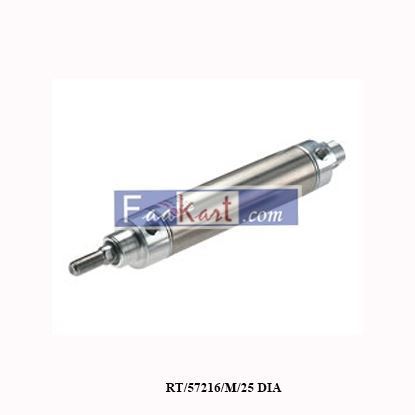

RT/57216/M/25 DIA NORGREN Roundline cylinder Magnetic
