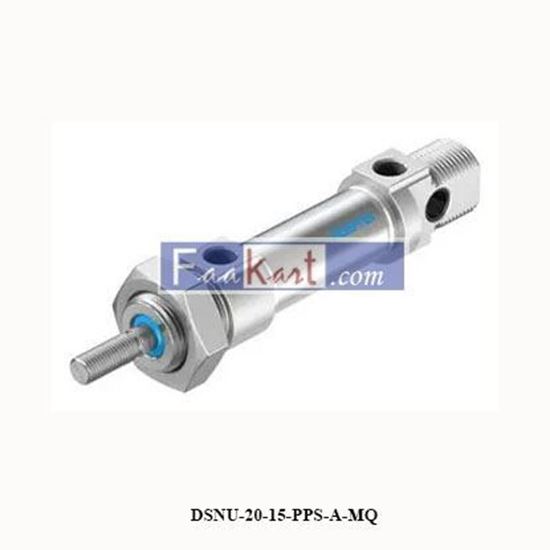

DSNU-20-15-PPS-A-MQ FESTO ISO cylinder 1908298

Pneumatic connection G1/8 Stroke 1mm Operating Pressure 1 bar ... 10 bar Mounting Position optional

Manufacturer: Festo

SKU: NSRN894

Old price: 450.00 (SAR)

Price: 194.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Material cylinder barrel		High-alloy stainless steel
Material seals		NBR TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		With accessories
Impact energy in end positions		0,2 J
Corrosion resistance class CRC		2 - Moderate corrosion stress 3 - high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Explosion ignition protection type for dust		Ex h IIIC T120°C Db
ATEX category dust		II 2D
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Mode of operation		Double-acting
Protection against torque/guide		Square piston rod
Position detection		Via proximity switch
Conforms to standard		CETOP RP 52 P ISO 6432
Cushioning		Elastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends
Stroke		1 mm ... 320 mm

Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy
Pneumatic connection		G1/8
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		158 N ... 189 N
Ambient temperature		-20 °C ... 120 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion ambient temperature		-20°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex h IIC T4 Gb
ATEX category gas		II 2G
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Operating pressure		1 bar ... 10 bar
Variants		Increased chemical resistance Extended male piston rod thread Piston rod with female thread Piston rod with male thread shortened at one end Extended piston rod Clamping unit on the piston rod Axial supply port With direct mounting Lateral supply port With protection against rotation High corrosion protection Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Piston rod at one end
Design		Piston Piston rod Cylinder barrel
Mounting position		optional
Piston diameter		20 mm
