Pneumatic Cylinders

NORGREN PRA/182040/M/50 PNEUMATIC CYLINDER 40 x 50mm D/A VDMA Profile Cylinder. Norgren VDMA Magnetic Air Cylinder

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work. Double acting, single rod, compact cylinder Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Standard stroke range *: 5 to 100 Port threads: M *; Rc, NPT or G * Auto switch capable

Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder Low friction, long-life seals High-strength, double-crimped end cap design Standard magnetic piston for full control system versatility Medium: Compressed Air Port Size: Rc1/8 Operation: Double acting Stroke length: 30 mm Cylinder diameter: 32 mm

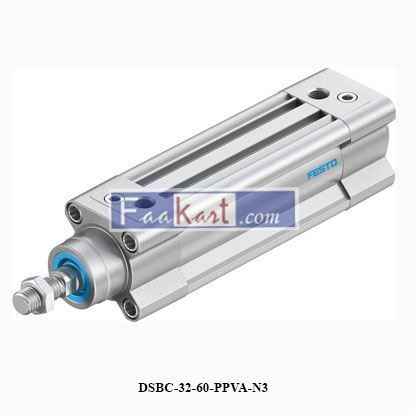

Festo Pneumatic Piston Rod Cylinder, 2123071, 32mm Bore, 60mm Stroke, DSBC Series, Double Acting

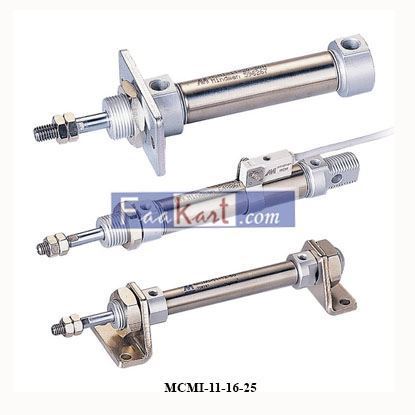

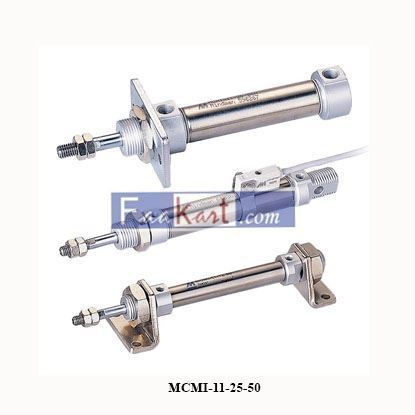

The Mindman Series MCMI features a special housing and bushing that enable self-lubrication of the piston rod. The hard anodized steel cylinder tubes offer high resistance to corrosion and low internal friction, which ensures a longer cycle life. Available with a comprehensive range of accessories for rigid or flexible mounting.

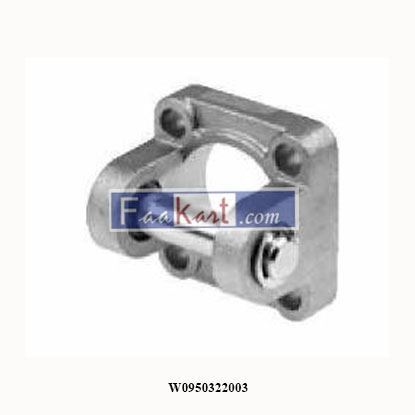

Fixing elements for pneumatic cylinders. Items used to fix and repair cylinders. Accessories for pneumatics are made up of a great variety of components that complement or form part of other pneumatic elements.

The Mindman Series MCMI features a special housing and bushing that enable self-lubrication of the piston rod. The hard anodized steel cylinder tubes offer high resistance to corrosion and low internal friction, which ensures a longer cycle life. Available with a comprehensive range of accessories for rigid or flexible mounting.

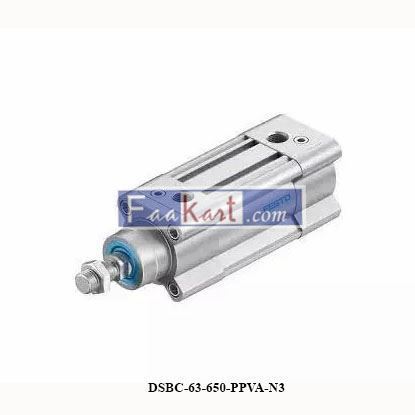

Mode of operation Double-acting Piston diameter 63 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1870 N Stroke 1 mm–2800 mm Cushioning Pneumatic cushioning, adjustable at both ends

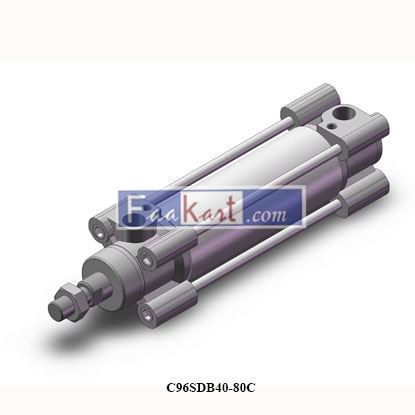

ISO Standard (15552) Compliant Air Cylinder, Standard Type, Double Acting, Single Rod, Double Rod C96 Series (C96SDB40-80C) ISO Standard 15552 is compliant. · Lightweight: reduced by up to 17%. · Takt time is shortened through a new cushioning method (air cushion + damper cushion). · Reduced metallic noise during piston stoppage through the damper cushion.

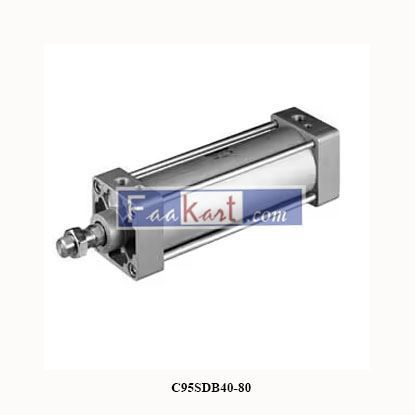

C95SDB4080 CYLINDER TIE ROD ISO AUTO-S *LQA

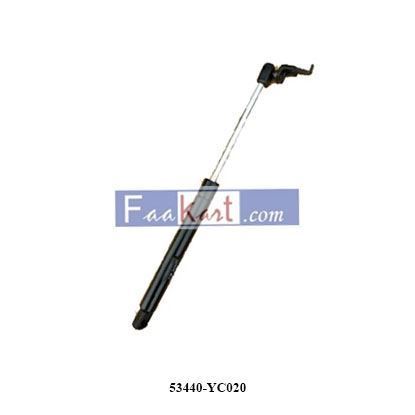

53440-YC020 Gas spring Cylinder

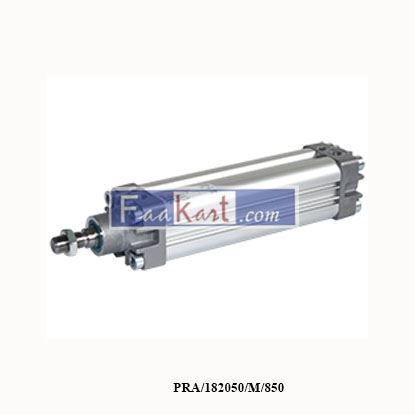

PRA/182050/M/850 NORGREN ISO/VDMA PROFILE CYLINDER

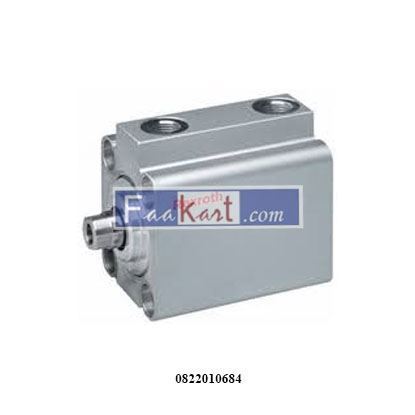

AVENTICS 0822010684: Short-stroke cylinder, Series KHZ (KHZ-DA-080-0025-M)

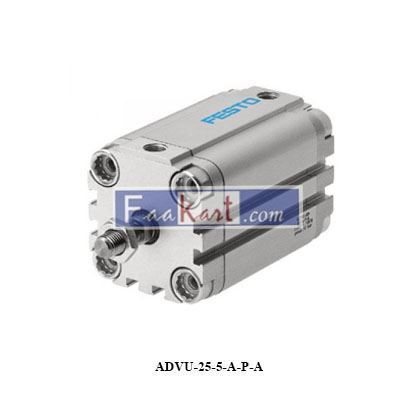

Mode of operation: Double-acting Piston diameter: 25 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N Stroke: 5 mm Cushioning Elastic cushioning rings/plates at both ends

Camozzi Series 27 has been designed to reduce the cylinder sizes as much as possible. These cylinders have been constructed with clean lines using stainless steel for both the tube and the rod and aluminium for the end blocks. Series 27 is suitable for assembly with magnetic sensors. Various mounting bracket accessories enable the cylinder to be fitted to suit the needs of most applications.

13194060001 CYLINDER MAGNETIC PISTON AND CHROMED ROD VERSION

AVENTICS 0822395010: Compact cylinder, Series KPZ (KPZ-DA-050-0100-004122411000020-B)

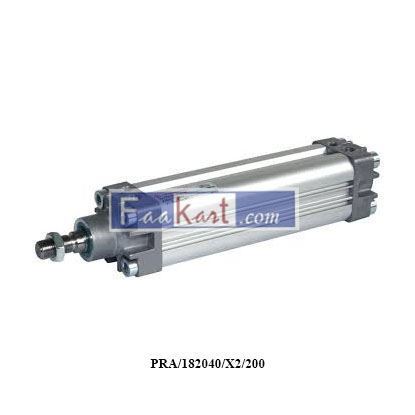

PRA/182040/X2/200 Norgren Cylinder

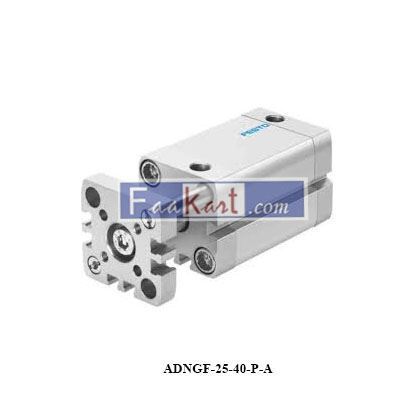

Piston diameter: 25 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N Stroke: 40 mm Cushioning: Elastic cushioning rings/plates at both ends Position detection: Via proximity switch

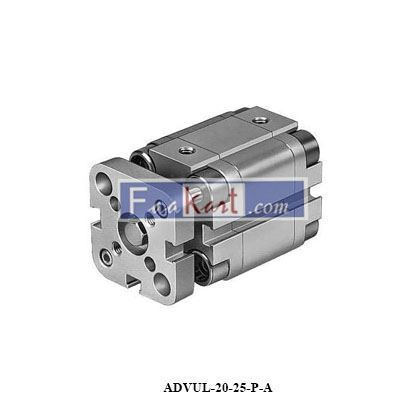

Piston diameter:20 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 188 N Stroke: 25 mm Cushioning: Elastic cushioning rings/plates at both ends Position detection: Via proximity switch
