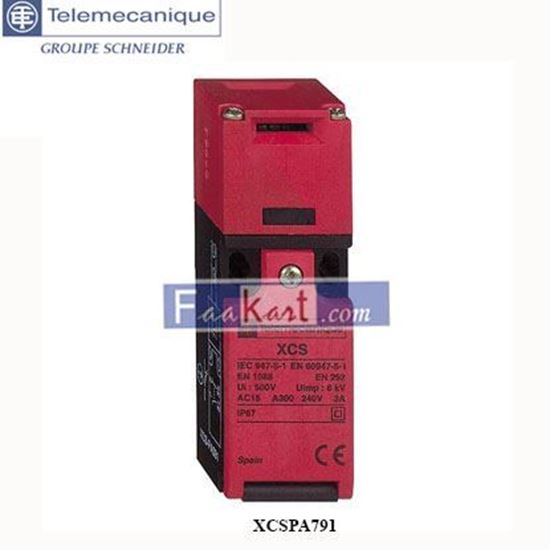

XCSPA791 Telemecanique Sensors Safety Interlock Switch, 2NC, Keyed, Glass Fibre Reinforced Nylon XCS-PA791
The Telemecanique sensors XCSPA series interlock switch has 2NC switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is polyamide and it is available in a key lock style.
1,350.00 (SAR)
731.00 (SAR)
Features and Benefits
2 positive opening contacts as standard, on guard opening
Head rotates in 90° steps giving 8 actuator entry points
Minimum operating force for positive opening is 15N
1 x cable entry tapped PG11
Operating temperature ranges between -25°C and 70°C
Features and Benefits
IP67 rated
EN1088
EN60204
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/ISO 12100
EN/IEC 60204-1
EN 1088/ISO 14119
UL 508
Specifications
Attribute |
Value |
Lock Style |
Keyed |
Normal State Configuration |
2NC |
Maximum AC Voltage |
240V |
Maximum DC Voltage |
250V |
Connection Type |
PG11 |
Housing Material |
Glass Fibre Reinforced Nylon |
Range |
Preventa |
IP Rating |
IP67 |
Number of Head Directions |
8 |
Series |
XCSPA |
Maximum Current |
6A |
Length |
94mm |
Maximum Operating Temperature |
+70°C |
Width |
30mm |
Minimum Operating Temperature |
-25°C |
Depth |
30mm |
