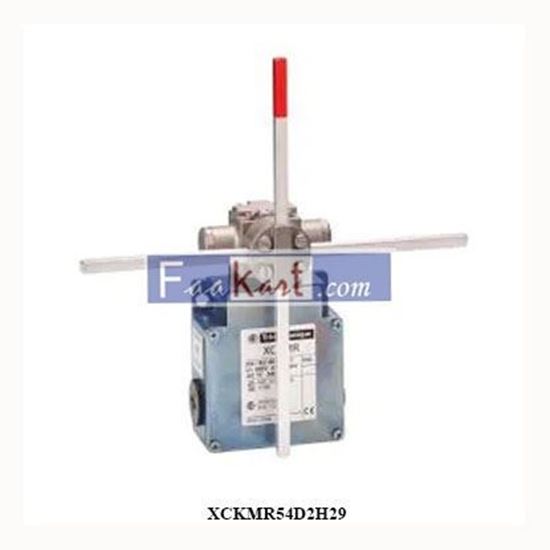

XCKMR54D2H29 Schneider Limit Switch

limit switch XCKMR
-  reverse head stay put crossed rods
-  2x(2 NC)
-  slow
-  M20.
Label :  OsiSense XC Special
-  range of product :  OsiSense XC
-  material :  metal
-  body material :  zamak
-  head material :  zamak
-  fixing mode :  by the body
-  movement of operating head :  rotary
-  type of operator :  stay put crossed rods lever metal square rod 6 mm, L = 200 mm
-  type of approach :  lateral approach, 2 directions
-  series name :  special format - cable entry :  3 entries tapped for M20 x 1.5 cable gland, cable outer diameter :  7-13 mm
-  number of poles :  4
-  contacts type and composition :  2 x (2 NC)
-  contact operation :  slow-break, staggered
-  product or component type :  limit switch
-  product specific application :  for hoisting and mechanical handling applications
-  device short name :  XCKMR
-  body type :  fixed
-  head type :  reversed rotary head
-  Range Presentation :  Very severe material handling applicationsFor hoisting and material handling applications :
