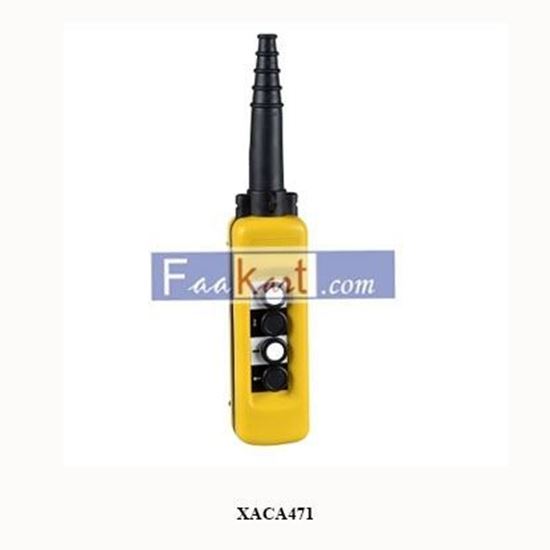

Control station type |
Double insulated |
Enclosure material |
Polypropylene |
Electrical circuit type |
Control circuit |
enclosure type |
Complete ready for use |
Control station application |
Control of single speed hoist motor |
Control station composition |
4 push-buttons |
Control button type |
First push-button 1 NO raise, slow Second push-button 1 NO lower, slow Fourth push-button 1 NO left, slow Third push-button 1 NO right, slow |
Product compatibility |
ZB2BE101 for each direction |
Mechanical interlocking |
With mechanical interlocking between pairs |
Control station colour |
Yellow |
Connections - terminals |
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
Standards |
CSA C22.2 No 14 EN/IEC 60204-32 UL 508 EN/IEC 60947-5-1 |
product certifications |
CCC GOST |
Protective treatment |
TH |
ambient air temperature for operation |
-25…70 °C |
Ambient air temperature for storage |
-40…70 °C |
Vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
Shock resistance |
100 gn conforming to IEC 60068-2-27 |
Overvoltage category |
Class II conforming to IEC 61140 |
IP degree of protection |
IP65 conforming to IEC 60529 |
IK degree of protection |
IK08 conforming to EN 50102 |
Mechanical durability |
1000000 cycles |
Cable entry |
Rubber sleeve with stepped entry 8…26 mm |
Contact code designation |
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
[Ithe] conventional enclosed thermal current |
10 A |
[Ui] rated insulation voltage |
600 V (pollution degree 3) |
[Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
contact operation |
Slow-break |
Maximum resistance across terminals |
25 MOhm |
Operating force |
10 N push-button |
Short-circuit protection |
10 A fuse protection by cartridge fuse type gG |
Rated operational power in W |
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
Terminals description ISO n°1 |
(13-14)NO |
Terminal identifier |
(13-14)NO (11-12)NC |
Net weight |
0.625 kg |
