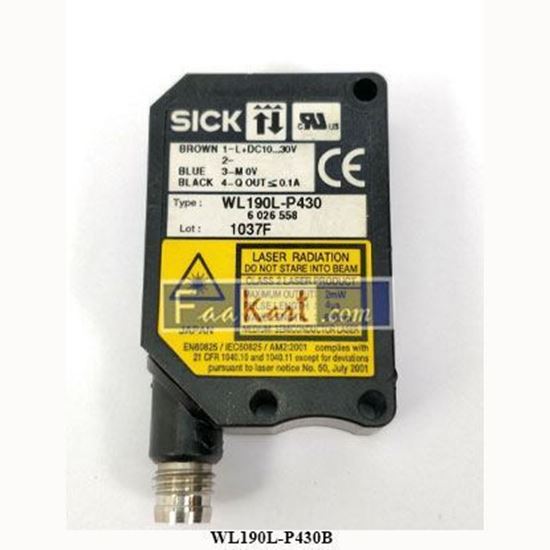

WL190L-P430B SICK Photoelectric reflex Switch

Photoelectric reflex Switch WL190L-P430 Laser, red-light, PNP,swtiching mode ds/ls selectable, M8 plug, 4 pin

Manufacturer: Sick

SKU: PCM1347

Old price: 455.00 (SAR)

Price: 328.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Your benefits

Highly visible laser light spot provides simple alignment and adjustment
Simple adjustment via potentiometer
Flexible operation with two output functions in one device due to light/dark selector switch
Reliable operation, even when reflector and sensor are mounted close to one another

Features
Sensor/detection principle:	Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D):	15 mm x 44.4 mm x 30 mm
Housing design (light emission):	Rectangular
Sensing range max.:	0.01 m ... 5.5 m ¹⁾
Type of light:	Visible red light
Light source:	Laser
Laser class:	2
Light spot diameter (distance):	Ø 45 mm (5 m)
Adjustment of operating distance:	Potentiometer, 1 revolution
¹⁾ P250F
Mechanics/electronics
Supply voltage:	10 V DC ... 30 V DC ¹⁾
Ripple:	± 10 % ²⁾
Power consumption:	≤ 40 mA ³⁾
Output type:	PNP, Light/dark-switching, manually selectable
Output current Imax.:	< 100 mA
Response time:	0.5 ms ⁴⁾
Switching frequency:	1,000 Hz ⁵⁾
Connection type:	Connector M8, 4-pin
Circuit protection:	A, D ⁶⁾ ⁷⁾
Protection class:	III ⁸⁾
Weight:	120 g
Polarisation filter:
Housing material:	ABS
Optics material:	PMMA
Enclosure rating:	IP 67
Items supplied:	Reflector P250F
Ambient operating temperature:	-10 °C ... 40 °C
Ambient storage temperature:	-20 °C ... 60 °C
¹⁾ Limit values ²⁾ May not exceed or fall short of V_S tolerances ³⁾ Without load ⁴⁾ Signal transit time with resistive load ⁵⁾ With light/dark ratio 1:1 ⁶⁾ A = V_S connections reverse-polarity protected ⁷⁾ D = outputs overcurrent and short-circuit protected ⁸⁾ Reference voltage 50 V DC
