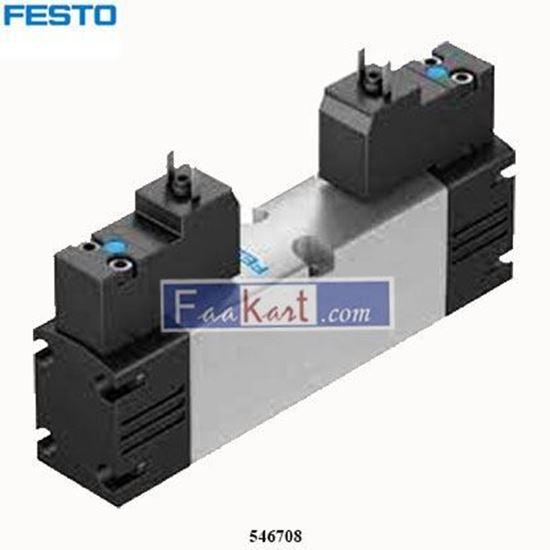

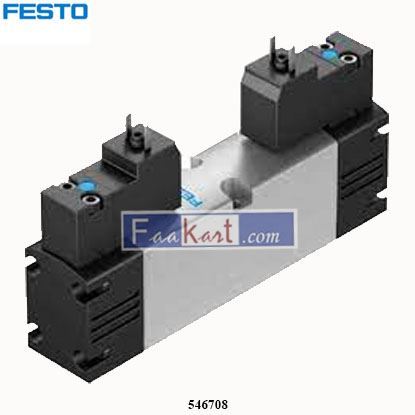

Manufacturer: festo
Type: Air solenoid valve
Model: VSVA-B-P53C-H-A1-1C1
Part no.: 546708
Actuation type: Electrical
Valve size: 26 mm
Standard nominal flow rate: 1000 l/min
Operating voltage: 24V DC
Operating pressure: 0.3 MPa … 1 MPa
Fluid: Air
Nominal width: 9 mm
Exhaust air function: With flow control option
Flow rate of pneumatic valve: 1400 l/min
Temperature of medium: -5 °C … 50 °C
Port Size: Sub based
