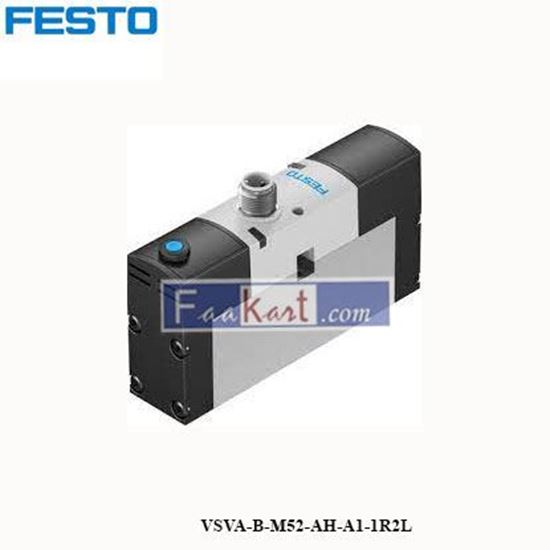

VSVA-B-M52-AH-A1-1R2L FESTO Solenoid valve 534535

Feature Value Valve function 5/2-way, monostable Type of actuation Electric Construction width 26 mm Standard nominal flow rate 1100 l/min pneumatic working port Sub-base size 26 mm to ISO 15407-1 Operating voltage 24V DC Operating pressure 0.3 MPa ... 0.8 MPa Operating pressure 3 bar ... 8 bar Design Piston gate valve Type of reset Pneumatic spring Approval RCM trademark c UL us - Recognized (OL) CE mark (see declaration of conformity) To EU EMC Directive CE marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions Degree of protection IP65 NEMA 4 Nominal size 9 mm Grid dimension 27 mm Exhaust-air function With flow control option Via throttle plate Via individual sub-base Sealing principle Soft Mounting position optional Conforms to standard ISO 15407-1 Manual override Non-detenting Type of piloting Pilot actuated Pilot air supply Internal Flow direction Non-reversible Symbol 00991049 lap Positive overlap Signal status display LED b value 0.25 C value 4.5 l/sbar Flow rate of valve 1400 l/min Flow rate of valve on individual sub-base 1100 l/min Flow rate of pneumatically interlinked valve 1100 l/min
