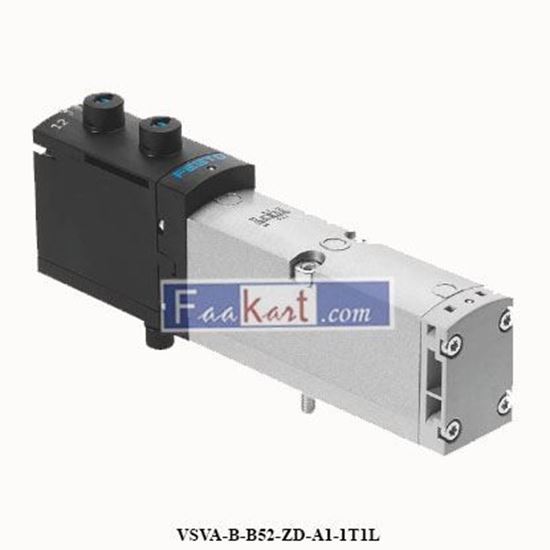

Valve function |
5/2 bistable |
Actuation type |
Electrical |
Build.width [mm] |
26 |
Normal nominal flow [l/min] |
1.100 |
Operating pressure [bar] |
-0.9 to 10 |
Construction set up |
Piston pusher |
Permission |
CSA (OL) c UL us - Recognized (OL) |
Protection category |
IP65 NEMA 4 |
Exhaust function |
drosselbar über Drosselplatte über Einzelanschlussplatte |
Sealing principle |
Soft |
installation position |
arbitrary |
Hand assist actuation |
Ratcheting Covered tentative |
Control type |
pilot operated |
Control air supply |
external Internal |
Flow direction |
arbitrary |
Überdeckung |
positive Überdeckung |
Signal condition display |
LED |
Control pressure [bar] |
3 to 10 |
Flow valve [l/min] |
1.400 |
Flow valve single connection plate [l/min] |
1.200 |
Flow valve pneumatically linked flow optimised [l/min] |
1.350 |
Flow valve pneumatically linked [l/min] |
1.100 |
Power-on time |
100 % |
Max. positive test impulse at 0 signal [µs] |
1.200 |
Max. negative test impulse for 1 signal [µs] |
1.100 |
Nominal operating voltage DC [V] |
24 |
Coil characteristic value |
24 V DC: 1,6 W |
Surge voltage strength [kV] |
2,5 |
Degree of contamination |
3 |
Permitted voltage oscillations |
± 10 % |
Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium |
Oiled operation possible (required in further operations) |
Oscillation strength |
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Shock resistance |
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
Corrosion resistant class KBK |
0 - No corrosion stressing |
Relative humidity |
0 - 90 % |
control medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
ambient temperature [°C] |
-5 to 50 |
Product weight [g] |
276 |
Electrical connection |
Plug-in to ISO 15407-2 |
Fastening type |
on connection plate |
Support air control connection 12/14 |
Connection plate Size 26 mm to ISO 15407-2 |
Exhaust control connection 82/84 |
Selectively: Recorded Not recorded to standard |
Pneumatic connection 1 |
Connection plate Size 26 mm to ISO 15407-2 |
Pneumatic connection 2 |
Connection plate Size 26 mm to ISO 15407-2 |
Pneumatic connection 3 |
Connection plate Size 26 mm to ISO 15407-2 |
Pneumatic connection 4 |
Connection plate Size 26 mm to ISO 15407-2 |
Pneumatic connection 5 |
Connection plate Size 26 mm to ISO 15407-2 |
Material information |
RoHs compliant |
Seals material |
FKM HNBR NBR |
Housing material |
PA Aluminium die casting |
Screws material |
Zinc-plated steel |
Shifting time um [ms] |
18 |
