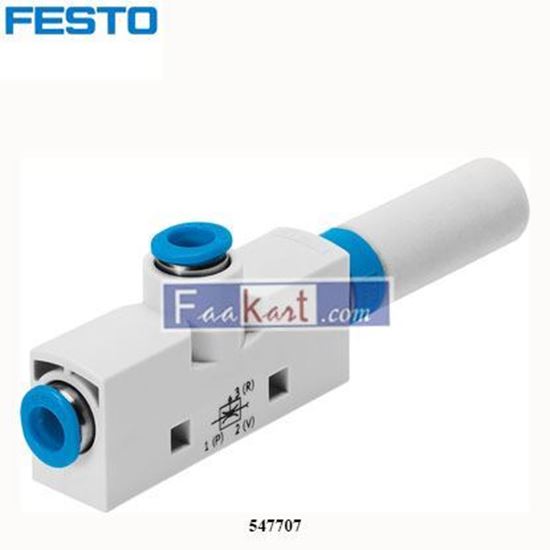

VN-14-H-T4-PQ2-VQ3-RO2 FESTO Vacuum generator 547707

Feature Value Nominal size, Laval nozzle 1.4 mm Grid dimension 18 mm Silencer design Open Mounting position optional Ejector characteristic High vacuum Standard Integrated function Open silencer Design T-shape Symbol 00991489 Operating pressure for max. suction flow rate 5.1 bar Operating pressure 1 bar ... 8 bar Operating pressure for max. vacuum 5 bar Max. vacuum 88 % Nominal operating pressure 6 bar Max. suction flow rate against atmosphere 51.6 l/min Air supply time at nominal operating pressure 0.5 s Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation not possible Corrosion resistance class CRC 1 - Low corrosion stress Media temperature 0 °C ... 60 °C Sound pressure level at nominal operating pressure 69 dB(A) Ambient temperature 0 °C ... 60 °C Max. tightening torque 0.5 Nm Product weight 36 g Type of mounting With through-hole With accessories Pneumatic connection, port 1 QS-6 Pneumatic connection, port 3 Open silencer Vacuum connection QS-8 Note on materials Contains paint-wetting impairment substances RoHS-compliant Material seals NBR Material receiver nozzle POM Material housing POM-reinforced Material silencer Die-cast aluminium POM PU foam
