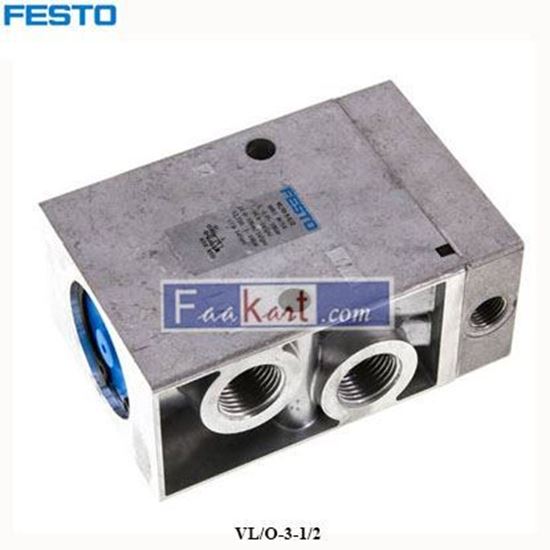

VL/O-3-1/2 FESTO Pneumatic valve 9983

VL/O-3-1/2 (9983) pneumatic valve

Manufacturer: Festo

SKU: PCM1566

Old price: 675.00 (SAR)

Price: 526.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties

Valve function	3/2 open/closed monostable
Actuation type	pneumatic
Build.width [mm]	52,0
Normal nominal flow [l/min]	3.700
Operating pressure [bar]	-0.95 to 10
Construction set up	Plate seat
Reset mode	Mechanical spring
Nominal width [mm]	14
Exhaust function	Can be throttled
Sealing principle	Soft
installation position	arbitrary
Control type	Direct
Control air supply	external
Flow direction	Reversible
Überdeckung	negative Überdeckung
Control pressure [bar]	1 to 10
Shifting time off [ms]	30
Shifting time on [ms]	17
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
Bearing temperature [°C]	-20 to 60
Medium temperature [°C]	-10 to 60
control medium	Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [°C]	-10 to 60
Product weight [g]	860
Fastening type	With throughway bores Selectively: on terminal strip
Control air 110 connection	G1/4
Control air 12 connection	G1/4
Pneumatic connection 1	G1/2
Pneumatic connection 11	G1/2
Pneumatic connection 2	G1/2
Pneumatic connection 3	G1/2
Pneumatic connection 33	G1/2
Material information	RoHs compliant
Seals material	NBR
Housing material	Aluminium die casting
Pitch dimension [mm]	69
Hand assist actuation	none
b-value	0.3
