Main function
Valve (Manually actuated)
Product series / family name
Pneumatic valves and valve manifolds - Mechanical and hand operated valves
Sub-range name
VHER series
Valve function
4/3-way mid-position Normally Closed (NC)
4-ports 3-positions
Functions
Manually-actuated hand lever valve
Design
lever on top
connection underneath
act. lock (lockable using accessories)
flow control
Polymer version
detenting manual override
Rotary slide valve
non-revers. flow
hard sealing
Compressed air (-20°C...+80°C) in accordance with ISO 8573-1/2010 [7;4;4] as input medium
Pressure
0...+10bar operating pressure
Flow
800L/min (LPM) (nominal)
Connection type
4 x G1/8" threaded pneumatic connections (ports 1; 2; 3; 4)
Mounting mode
Front panel
Through-hole
Material
PA housing
NBR seals
PA actuating lever
Ambient air temperature for operation
-20...+80 °C
Force
0.9N actuation force
Equivalent to

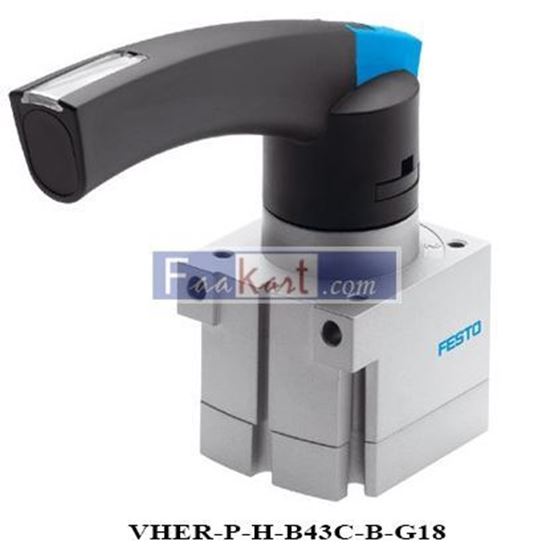

VHERPHB43CBG18
Order code / Manufacturer SKU
3488209
Compliant with standard(s)
Zone 2 (ATEX)
Zone 22 (ATEX)
RoHS
Free of copper and PTFE
Chemical resistance
Corrosion resistance class CRC 2 (moderate corrosion stress)
