  • VCF0GEGP Schneider Electric TeSys Vario enclosed, emergency switch disconnector

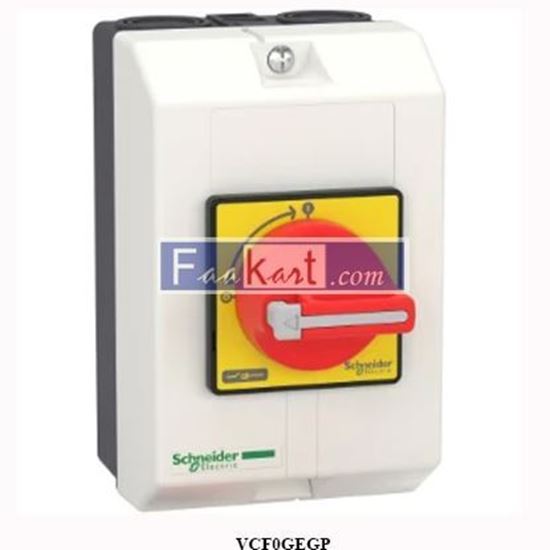

Picture of VCF0GEGP Schneider Electric TeSys Vario enclosed, emergency switch disconnector

VCF0GEGP Schneider Electric TeSys Vario enclosed, emergency switch disconnector

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 20A 690V, for main and emergency stop switching in motor applications up to 7.5kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V0 with 2 possible add-on module attachments, a ground plate for shielded cable continuity. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Be the first to review this product
Manufacturer: Schneider
SKU: RSMN030
1,650.00 (SAR)
1,580.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Main
Range TeSys
Product name TeSys VARIO
Device short name VCF
Product or component type Enclosed emergency stop switch disconnector
Performance level High performance
Poles description 3P
Control type Rotary handle
Handle colour Red
Handle front plate colour Yellow
Rotary handle padlocking 1 to 3 padlocks 4…8 mm
Complementary
Marking 0 - 1
[Ue] rated operational voltage 690 V AC
[Uimp] rated impulse withstand voltage 8 kV
[Ithe] conventional enclosed thermal current 20 A
[Ie] rated operational current 14.5 A (AC-23A) at 400 V
Rated operational power in W 7.5 kW at 400 V (AC-23)
5.5 kW at 400 V (AC-3)
Intermittent duty class 30
Making capacity ( I rms) 250 A at 400 V AC-21A
250 A at 400 V AC-22A
250 A at 400 V AC-23A
[Icm] rated short-circuit making capacity 1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current 300 A at 400 V duration: 1 s
Rated conditional short-circuit current 10 kA at 400 V - associated fuse 25 A aM
10 kA at 400 V - associated fuse 25 A gG
Breaking capacity 200 A at 400 V (AC-21A)
200 A at 400 V (AC-22A)
200 A at 400 V (AC-23A)
Mechanical durability 100000 cycles
Electrical durability 100000 cycles AC-21
30000 cycles DC-1...5
Environmental characteristic Standard environment
Suitability for isolation Yes
Connections - terminals Power circuit: screw clamp terminals2.5…4 mm² - flexible - with cable end
Protective earth: screw clamp terminals2.5…4 mm² - flexible - with cable end
Shield cable earth: cable clips
Tightening torque 2.1 N.m - on screw clamp terminals
Fire resistance 960 °C conforming to IEC 60595-2-1
handle front plate dimension 60 x 60 mm
Height 146 mm
Width 90 mm
Depth 131 mm
Net weight 0.5 kg
