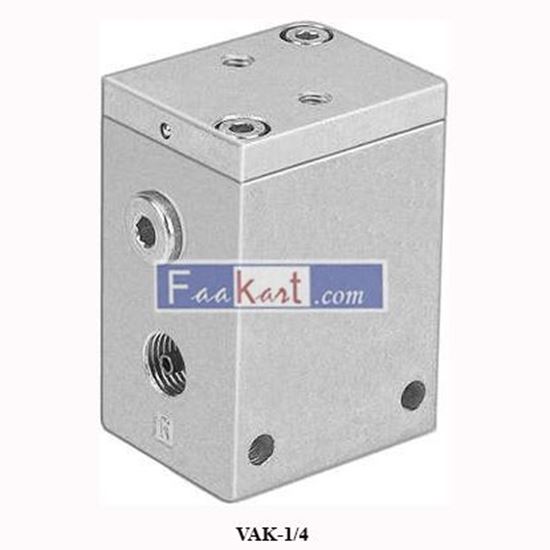

VAK-1/4 Festo Vacuum generator (6890)

Vacuum generator VAK-1/4 6890
Manufacturer: Festo
SKU: RSMN346
450.00 (SAR)
315.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Data

  • Nominal size, Laval nozzle1 mm
  • Mounting positionoptional
  • Ejector characteristicHigh vacuum
  • Integrated functionEjector pulse, pneumatic
  • DesignT-shape
  • Symbol00991484
  • Operating pressure1.5 bar ... 10 bar
  • Max. vacuum80 %
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 80 °C
  • Ambient temperature-20 °C ... 80 °C
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 3G1/4
  • Vacuum connectionG1/4
  • Material housingDie-cast aluminium
