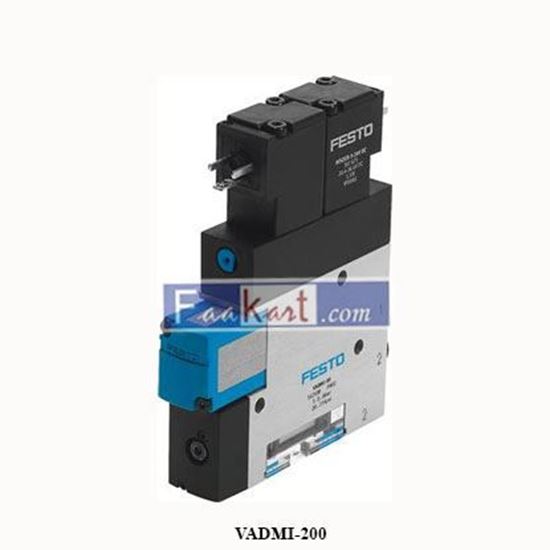

Nominal width laval nozzle [mm] |
2,00 |
Pitch dimension [mm] |
22 |
Construction type silencer type |
closed |
installation position |
arbitrary |
Ejector characteristic |
High vacuum |
Filter porosity [µm] |
<= 40 µm |
Hand assist actuation |
tentative |
Integrated function |
check valves Electrical switch on valve Ejection impulse electrical flow control valve (both directions) filter |
Valve function |
closed |
Operating pressure [bar] |
2 to 8 |
max. vacuum [%] |
85 |
Nominal operating pressure [bar] |
6 |
Venting time for nominal operating pressure [s] |
0,15 |
Operating voltage range DC [V] |
21.6 to 26.4 |
Power-on time |
100 % |
Permission |
c UL us - Recognized (OL) |
Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium |
Oiled operation not possible |
Corrosion resistant class KBK |
2 - moderate corrosion stress |
Medium temperature [°C] |
0 to 60 |
Protection category |
IP65 |
ambient temperature [°C] |
0 to 60 |
Product weight [g] |
350 |
Electrical connection |
Plug |
Fastening type |
With throughway bores With female thread Selectively: |
Pneumatic connection 1 |
G1/4 |
Pneumatic connection 3 |
Silencer integrated |
vacuum connection |
G3/8 |
Material information |
Copper and PTFE-free RoHs compliant |
Seals material |
NBR |
Capture nozzle material |
Nickel-plated brass |
Filter material |
PA |
Filter housing material |
PC |
Housing material |
Aluminium wrought alloy |
Silencer material |
PE POM |
Piston material |
POM |
Jet nozzle material |
Nickel-plated brass |
