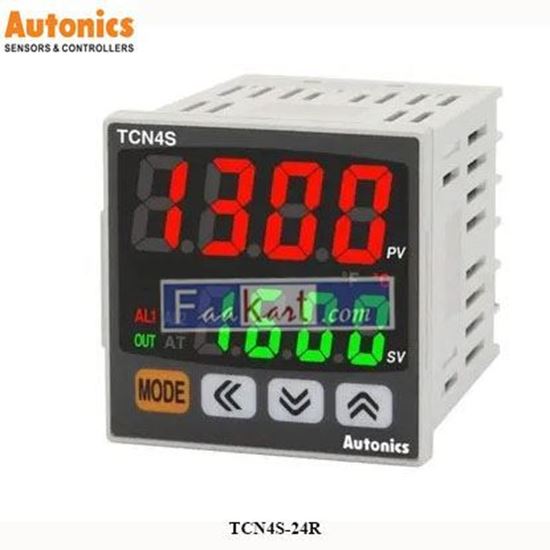

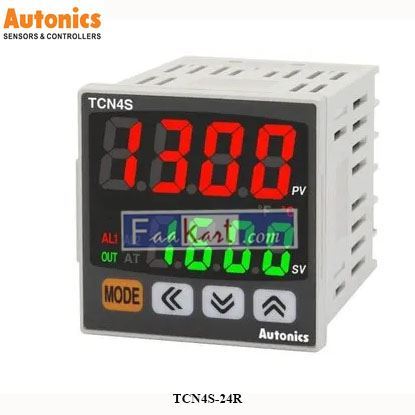

TCN4S-24R Autonics Temperature Controllers

Item	Unit Price	Unit Tax	Subtotal	Action
TCN4S-24R Autonics Temperature Controllers	164.00 (SAR)	24.60	188.60 (SAR)
			Shipping	0.00
			Total	188.60 (SAR)

Contact Informations

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Manufacturer	AUTONICS
Type of module	regulator
Kind of temperature sensor	Cu50, Pt100, thermocouple J, thermocouple K, thermocouple L, thermocouple R, thermocouple S, thermocouple T
Controlled parameter	temperature
Kind of output 1	SPST-NO
Kind of output 2	SSR
Kind of output 3	SPST-NO
Kind of output 4	SPST-NO
Regulation for output 1	ON-OFF, P, PD, PI, PID
Mounting	on panel
Output 1 electrical parameters	250V AC / 3A
Output 2 electrical parameters	12V DC / 20mA
Output 3 electrical parameters	250V AC / 1A
Output 4 electrical parameters	250V AC / 1A
Controlled parameter range	-1999...9999
Operating temperature	-10...50°C
The programming method	foil keypad
Body dimensions	48x48x70.5mm
Mounting hole diameter	45x45mm
Kind of display used	LED x2 4 digits
Display height 1	15mm
Display 2 height	9.5mm
