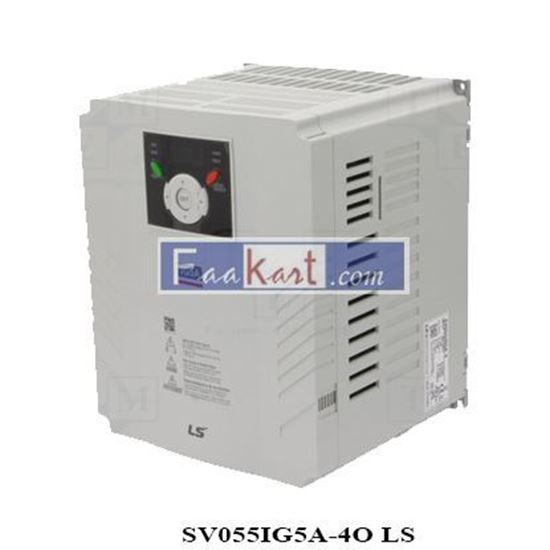

SV055IG5A-40 LS INVERTER

Contact Informations

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Manufacturer	LS ELECTRIC
Type of module	Inverter
Max motor power	5.5kW
Inverter output voltage	3 x 380V AC
Voltage between phases (for three phase system)	3 x 380...480V AC
Input 1 properties	rotational speed setting with signal 0...10V, 4...20mA, 0...20mA
Voltage output	0...10V
Electrical connection	screw terminals
Mounting	for wall mounting
The programming method	keypad
Protection OCP - Over Current Protection OPP - Over Power Protection OVP - Under Voltage Protection SCP - Short Circuit Protection OTP - Over Temperature Protection BOP - Brown-Out Protection	anti-overload OPP, anti-overvoltage OVP, overheating OTP, short circuit protection SCP, voltage drop BOP
Number of inputs	5
Number of analog inputs	1
Operating temperature	-10...40°C
Output frequency	0.1...400Hz
Starting/stopping time	0.1...6000s
Current rating	12A
Digitally/analogously set output frequency accuracy	0.01/0.01%
Number of analog outputs	1
Manufacturer series	iG5A
Related items	SV-IG5A-RC-2M
