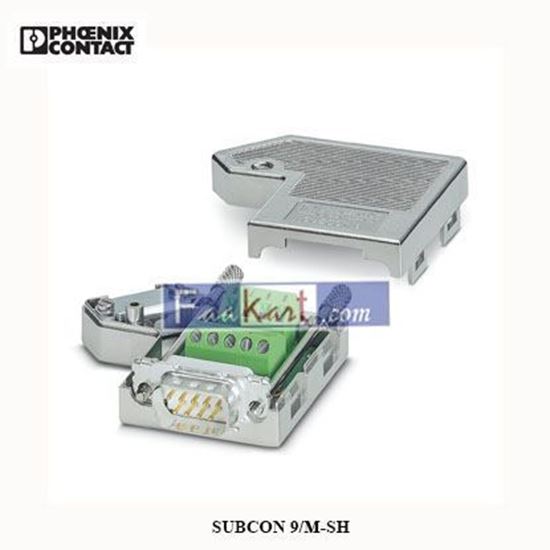

SUBCON 9/M-SH PHOENIX CONTACTOR D-SUB bus connector 2761509

D-SUB connector, 9-pos., male connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to screw connection terminal block
Be the first to review this product
Manufacturer: Phoenix Contact
SKU: PCM1180
245.00 (SAR)
172.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

The 9-pos. version of the SUBCON-... connector range is not just suitable for INTERBUS, but is positively ideal. A whole host of further applications are opened up by having all the connections assigned to their own 1 mm2 screw terminal block. The range covers SUBCON plugs for point-to-point connections with a cable infeed in 9, 15 and 25-pos. male or female versions. The optional fastening screw SUBCON-SHORT-SCREW is available as an accessory for narrow installation conditions. The screw is completely integrated into the housing by not having a knurl.



Technical Data

Notes
Utilization restriction
CCCex note Use in potentially explosive areas is not permitted in China.
Product properties
Product type Data plug
MTTF 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignment All connections are 1:1 on the screw terminal block
Electrical properties
Nominal voltage UN 50 V DC
Nominal current IN 100 mA
Transmission medium Copper
Connection data
D-SUB connection
Connection method D-SUB socket
PCB connection
Connection method Screw connection
Stripping length 5 mm
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 1.5 mm²
Conductor cross section flexible min. 0.14 mm²
Conductor cross section flexible max. 1 mm²
Single-wire/terminal point, solid AWG min. 26
Single-wire/terminal point, solid AWG max. 16
Min. AWG conductor cross section, flexible 26
Max. AWG conductor cross section, flexible 18
Interfaces
Signal Modbus
RS-232
RS-422
RS-485
Dimensions
Dimensional drawing
Width 16 mm
Height 55 mm
Length 56.5 mm
Material specifications
Material ABS (metal-plated)
Cable / line
External cable diameter 4 mm ... 10 mm (Incoming bus line)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles > 200
Environmental and real-life conditions
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -20 °C ... 75 °C
Ambient temperature (storage/transport) -25 °C ... 80 °C
Altitude ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation) 10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
