Directional Solenoid Valve

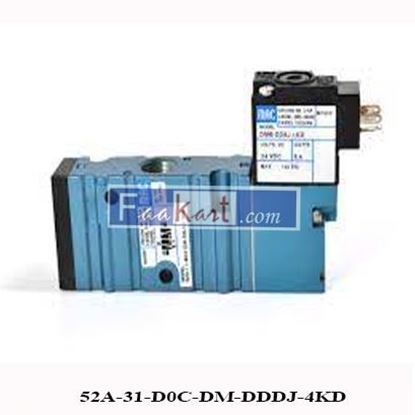

52A-31-D0C-DM-DDDJ-4KD SOLENOID VALVE 3 WAY SINGLE OPERATOR NO VALVE INLINE 3 PORT G1/4 INCH 24 VDC 7.3 WATT

8012750 3053 02400 indirect pause-café actuated soft seal spool valves

VUVG-L18-M52-MT-G14-1P3 574429 Festo Valve

Electrical conformity IEC 335 Protection degree IP 65 EN 60529 (DIN 40050) with coil fitted by connector.

Feature Value Valve function 5/2-way, monostable Type of actuation Electric Construction width 26 mm Standard nominal flow rate 1100 l/min pneumatic working port Sub-base size 26 mm to ISO 15407-1 Operating voltage 24V DC Operating pressure 0.3 MPa ... 0.8 MPa Operating pressure 3 bar ... 8 bar Design Piston gate valve Type of reset Pneumatic spring Approval RCM trademark c UL us - Recognized (OL) CE mark (see declaration of conformity) To EU EMC Directive CE marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions Degree of protection IP65 NEMA 4 Nominal size 9 mm Grid dimension 27 mm Exhaust-air function With flow control option Via throttle plate Via individual sub-base Sealing principle Soft Mounting position optional Conforms to standard ISO 15407-1 Manual override Non-detenting Type of piloting Pilot actuated Pilot air supply Internal Flow direction Non-reversible Symbol 00991049 lap Positive overlap Signal status display LED b value 0.25 C value 4.5 l/sbar Flow rate of valve 1400 l/min Flow rate of valve on individual sub-base 1100 l/min Flow rate of pneumatically interlinked valve 1100 l/min

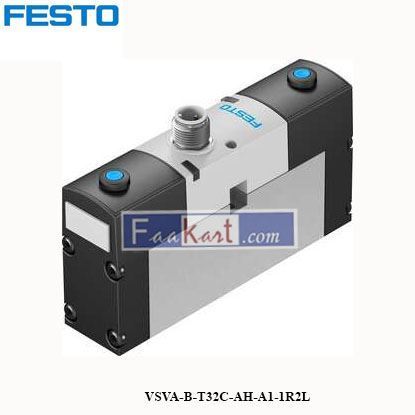

Solenoid valve VSVA-B-T32C-AH-A1-1R2L with central plug, round design M8x1. Valve function=2x3/2 closed, monostable, Type of actuation=electrical, Width=26 mm, Standard nominal flow rate=900 l/min, Operating pressure=3 - 8 bar

Solenoid Valve, 5 Port, 24VDC, 2 Position Single, -COM

Control Voltage: 24V DC, 1W Conforms to Standard: Pneumatic Connection: G1/8 Operating Pressure: Valve Function: 5/2 Valve Nominal Flow Rate: 550l/min Design Structure: Spool Type of Reset: Pneumatic Spring

Fluid: Air Valve Function: 5/3 Way, exhausted Type of Actuation: Electrical Working Pressure: 3 … 8 bar Flow Rate: 570 L/m Pneumatic Connection: G 1/8 , Threaded Supply Voltage: 24 V DC Fluid Temperature Range: -5 … 50°C Weight: 0.125 g

Compact cylinder; Piston diam: 25mm; Piston stroke: 10mm

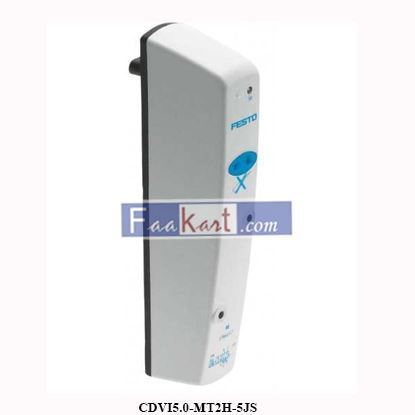

CDVI5.0-MT2H-5JS FESTO Solenoid valve

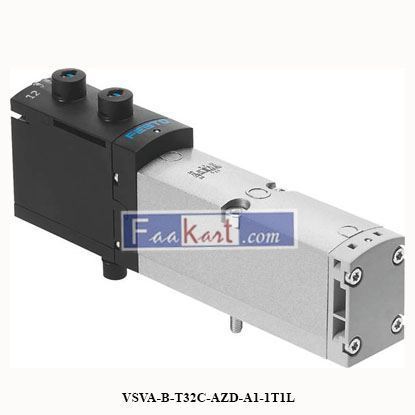

VSVA-B-T32C-AZD-A1-1T1L FESTO Solenoid valve 539150

MFH-3-3/4 Festo-11967 MFH-3-3/4 solenoid valve

Electro pneumatic ISO valve-5/2-size 3-sol spring

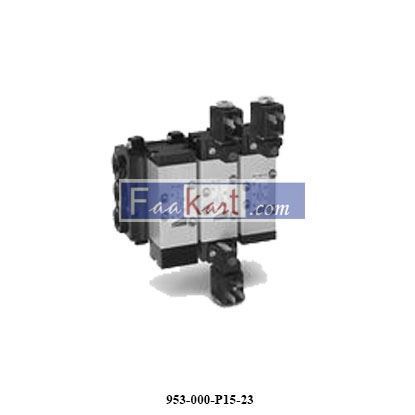

953-000-P15-23 CAMOZZI Electropneumatic ISO valve-5/2-size 3-sol spring

SMC SY7140-5DZD valve, sgl sol, base mt, din, SY7000 SOL/VALVE, RUBBER SEAL

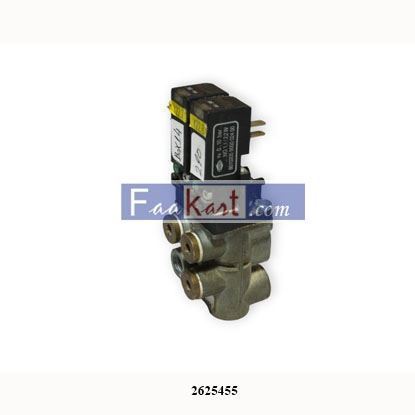

HERION 2625455 SOLENOID VALVE

DIRECTIONAL VALVE, HF03-LG SERIES, 5/3, CLOSED CENTER, 24 VDC, 0.35 WATT, EXTERNAL PILOT, MANUAL OVERRIDE, WITHOUT DETENT, PLATE CONNECTION, 145 PSI MAX

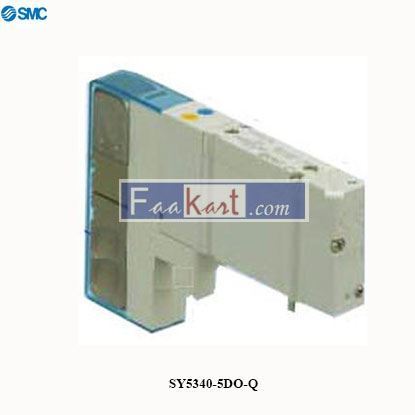

SMC SY5340-5DO-Q 5 port solenoid valve, 4/5 PORT SOLENOID VALVE
