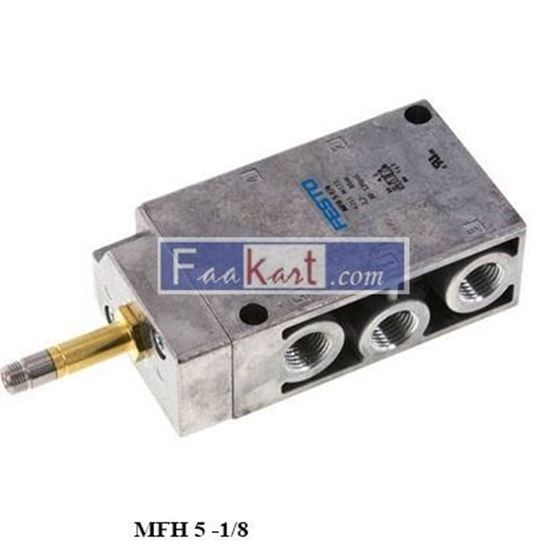

MFH-5-1/8 FESTO SOLENOID VALVE 9982

SOLENOID VALVE MFH 5 -1/8 PT No 9982 Valve function 5/2-way, monostable Standard nominal flow rate 500 l/min Pneumatic connection, port 1 G1/8 Type of actuation Electric

Be the first to review this product

Manufacturer: Festo

SKU: HAI0033

Old price: 450.00 (SAR)

Price: 251.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Valve function5/2-way, monostable
Type of actuationElectric
Construction width26 mm
Standard nominal flow rate500 l/min
pneumatic working portG1/8
Operating voltageVia solenoid coil, must be ordered separately
Operating pressure0.18 MPa ... 0.8 MPa
Operating pressure1.8 bar ... 8 bar
DesignPoppet seat
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP65
Nominal size5 mm
Grid dimension27 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting
Type of pilotingPilot actuated
Flow directionNon-reversible
Symbol00991035
Overlapno
Switching time off36 ms
Switching time on8 ms
Max. positive test pulse with 0 signal2200 µs
Max. negative test pulse with 1 signal3700 µs
Characteristic coil dataSee solenoid coil, to be ordered separately
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 °C ... 60 °C
Media temperature-10 °C ... 60 °C
Ambient temperature-5 °C ... 40 °C
Product weight270 g
Electrical connectionVia F coil, to be ordered separately
Type of mountingEither: On manifold rail With through-hole
Pilot exhaust port 82M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS-compliant
Material sealsNBR TPE-U(PU)
Material housingDie-cast aluminium
