Shaft Coupling, Flexible Coupler Vibration Absorption For Machine Tool Platform For Transmission Equipment LHCER

Shaft Coupling, Flexible Coupler Vibration Absorption for Machine Tool Platform for Transmission Equipment
Specification:

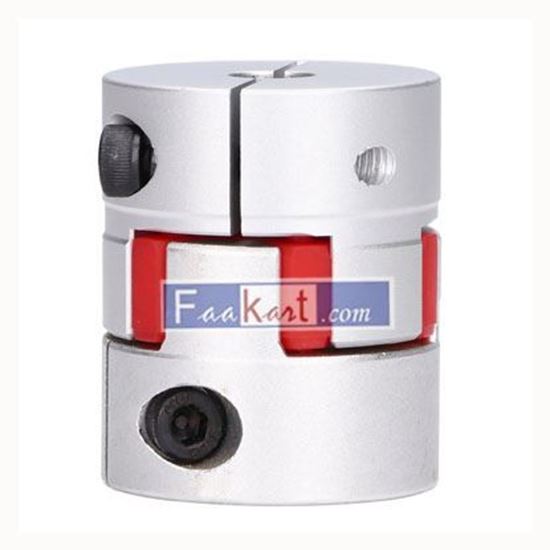

Item Type: Flexible Coupler
Coupling Type: Plum Shape Coupling
Nominal Torsion: 20N.m
Permissible Speed: 10000r/m
Allowable Torsion: 12.5N.M
Length: Approx. 49mm / 1.9in
Outer Diameter: Approx. 40mm / 1.6in
Elastomer Material: Germany Imported Polyurethane
Product Series: GFC aluminum alloy plum shape clamp series
Shaft Sleeve Material: High strength aluminum alloy
Application:
Widely used in shaft transmission of various mechanical devices, such as water pumps especially high power, chemical pumps, fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining machinery, metallurgical machinery, aviation helicopters, naval high speed power transmission systems, steam turbines, piston type power mechanical transmission systems, crawler vehicles, and high speed, high power mechanical transmission systems of generator sets are commonly used in high speed transmission shaft systems after dynamic balance.

Description:
The characteristics of the coupling diaphragm are a bit like a bellows coupling, in fact the way the coupling transmits torsion is similar. The diaphragm itself is very thin, so it is easy to bend when the relative displacement load is generated, so it can withstand up to 1.5 degrees of deviation, while generating a lower bearing load in the servo system. Diaphragm couplings are often used in servo systems. Diaphragms have torsion rigidity, but are slightly inferior to bellows couplings. On the other hand, the diaphragm coupling is very delicate and can be easily damaged if it is misused in use or not installed correctly. Therefore, it is very necessary to ensure that the deviation is within the tolerance range of the normal operation of the coupling. Choosing the right coupling is a key step to make use of the coupling. In the design stage, you have to consider what type of coupling to choose.
Compared with the gear coupling, the diaphragm of the coupling has no relative sliding, no lubrication, sealing, no noise, basically no maintenance, easy to manufacture, and can partially replace the gear coupling. Diaphragm couplings are commonly used in developed countries in the world. Machinery industry standards have been formulated in our country, and they have recently been revised as new industry standards: /T 9147-1999 instead of ZB/T J19022-90 The relationship between each torsion of the device.
