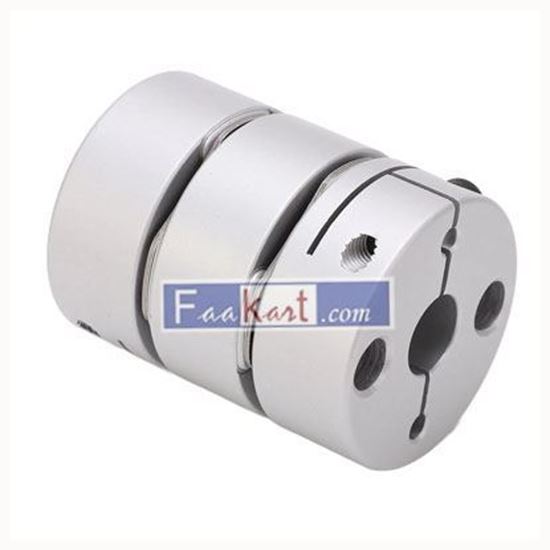

Shaft Coupling, 34mm OD Shafts Coupler For Replacement Eotvia
Shafts Coupler, 34mm OD Shaft Coupling Stainless Steel Disc Wide Application Firm Connection High Strength for Replacement
268.00 (SAR)
189.00 (SAR)
haft Coupling, 34mm OD Shafts Coupler for Replacement
Specification:
Item Type: Shaft Coupling
Material: Aluminium alloy, stainless steel
Outer Diameter: Approx. 34mm / 1.34in
Maximum Shaft Diameter: Approx. 10mm / 0.39in
Minimum Shaft Diameter: Approx. 8mm / 0.31in
Axial Displacement: ?0.38K?a
Eccentricity: 0.18Kr
Angular: 2.2a
Static: 2000Nm/rad
Radial: 3500Nm/rad
Rated Torsion: 5.5N?m
Maximum Torsion: 11N?m
