CE certificate (see declaration of conformity) |
to EU EMC directive |
Permission |
RCM mark |
Working distance |
100 - 300 mm |

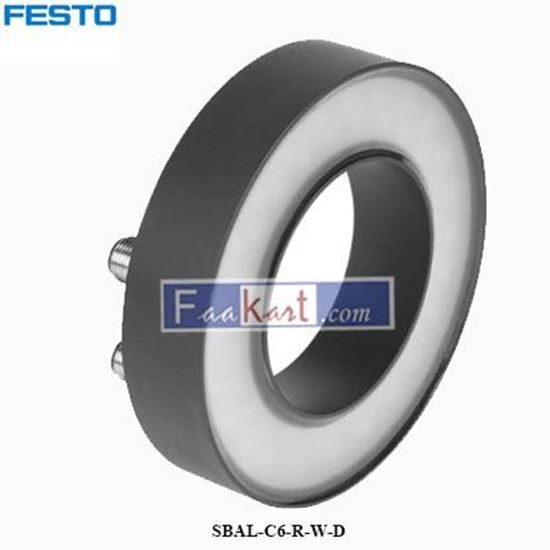

Illumination type |
Ring light |
Light type |
LED White Diffuse |
Shaft length |
410 - 750 nm |
Electrical connection |
2x M12 12 pin Plug |
Trigger level |
Noise level 18 V ... UB |
Nominal operating voltage DC [V] |
24 |
Permitted voltage oscillations |
± 5 % |
residual ripple |
5 % |
Power input in continuous operation [mA] |
390 |
Power input in flash mode [mA] |
390 |
Row |
2 |
Reverse polarity protection |
for all electrical connections |
Ambient temperature in continuous operation [°C] |
0 to 35 |
Ambient temperature in flash mode [°C] |
0 to 50 |
Bearing temperature [°C] |
-20 to 60 |
Protection category |
IP67 |
Product weight [g] |
150 |
Fastening type |
With mounting bracket |
Housing material |
aluminium anodized |
Material information |
RoHs compliant |
