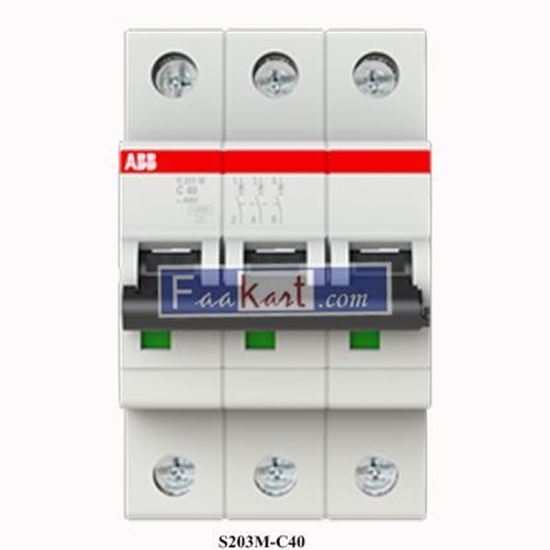

S203M-C40 ABB 2CDS273001R0404 Miniature Circuit Breaker - 3P - C - 40 A

Technical

• Standards:

  IEC/EN 60898-1
  CSA 22.2 No. 235
  IEC/EN 60947-2
  UL 1077

• Tripping Characteristic:

  C

• Rated Operational Voltage:

  acc. to IEC 60898-1 400 V AC
  acc. to IEC 60947-2 440 V AC

• Operational Voltage:

  Maximum (Incl. Tolerance) 440 V AC
  Minimum 12 V AC
  Minimum 12 V DC

• Rated Insulation Voltage (Ui):

  acc. to IEC/EN 60664-1 440 V

• Rated Impulse Withstand Voltage (Uimp):

  4 kV
  at 2000 m 5 kV
  at Sea Level 6.2 kV

• Dielectric Test Voltage:

  50/60 Hz, 1 min: 2 kV

• Input Voltage Type:

  AC/DC

• Rated Current (In):

  40 A

• Rated Short-Circuit Capacity:

  (AC) 10 kA
  (230 V AC) 10 kA
  (400 V AC) 10 kA

• Rated Ultimate Short-Circuit Breaking Capacity (Icu):

  (230 V AC) 25 kA
  (400 V AC) 15 kA
  (440 V AC) 15 kA

• Rated Conditional Short-Circuit Current (Inc):

  (230 V) 15 kA
  (400 V) 25 kA

• Rated Service Short-Circuit Breaking Capacity (Ics):

  (230 V AC) 7.5 kA

• Frequency (f):

  50 Hz

• Rated Frequency (f):

  50 / 60 Hz

• Power Loss:

  14.4 W
  at Rated Operating Conditions per Pole 4.8 W

• Power Supply Connection:

  Arbitrary

• Contact Position Indication:

  Red ON / Green OFF

• Energy Limiting Class:

  3

• Electrical Endurance:

  10000 AC cycle

• Mechanical Endurance:

  20000 cycle

• Number of Poles:

  3

• Number of Protected Poles:

  3

• Overvoltage Category:

  III

• Product Range:

  S200M

• Tightening Torque:

  2.8 N·m

• Screw Terminal Type:

  Failsafe Bi-directional Cylinder-lift Terminal

• Actuator Marking:

  I / O

• Actuator Material:

  Insulation Group II, Black, Sealable

• Housing Material:

  Insulation Group II, RAL 7035

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Mounting Position:

  any

• Recommended Screw Driver:

  Pozidriv 2

• Accessories Available:

  Yes

• Connecting Capacity:

  Busbar 10 / 10 mm²
  Flexible with Ferrule 0.75 ... 25 mm²
  Flexible 0.75 ... 25 mm²
  Rigid 0.75 ... 35 mm²
  Stranded 0.75 ... 35 mm²

• Installation Size:

  acc. to DIN 43880 1

• Terminal Type:

  Screw Terminals
