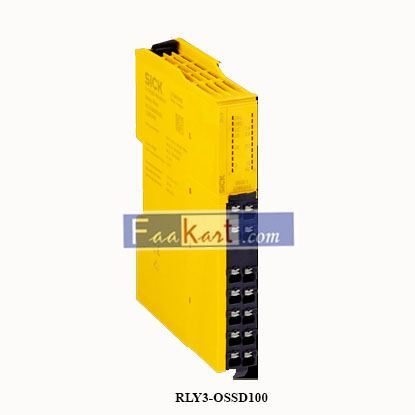

RLY3-OSSD100 SICK Safety controllers 1085343

Safety controllers Flexi Compact / Flexi Soft / ReLy / Output expansion module for OSSDs

Manufacturer: Sick

SKU: PCM834

Old price: 1,245.00 (SAR)

Price: 848.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Interfaces

Connection type	Front connector with spring terminals
Inputs	2 safety inputs
Outputs	2 enabling current paths (safe) 1 feedback current path (for use as external device monitoring, not safe)
Display elements	LEDs

Electrical data - Operating data

Voltage supply Passive (no active voltage supply)

Power consumption (input circuits) ≤ 1.5 W (DC)

Electrical data - Enabling current paths

Response time	12 ms
Number	2
Type of output	N/O contacts, positively guided
Contact material	Silver alloy, gold flashed
Switching voltage	10 V AC ... 230 V AC 10 V DC ... 230 V DC
Switching current	10 mA ... 6 A
Total current	12 A
Mechanical life	1 x 107 switching cycles
Overvoltage category	III (EN 60664-1)
Rated impulse withstand voltage Uimp	6 kV (EN 60664-1)

Electrical data - Check-back current paths

Number	1
Type of output	N/C contact, positively guided
Contact material	Silver alloy, gold flashed
Switching voltage	15 V AC ... 30 V AC 15 V DC ... 30 V DC
Switching current	3 mA ... 100 mA
Mechanical life	1 x 107 switching cycles

Mechanical data

Dimensions (W x H x D) 18 mm x 124.6 mm x 85.5 mm

Weight 130 g

Ambient data

Enclosure rating	IP20 (IEC 60529)
Ambient operating temperature	–25 °C ... +55 °C
Storage temperature	–25 °C ... +70 °C
Air humidity	10 % ... 95 %, Non-condensing
Interference emission	According to IEC 61000-6-4
Interference resistance	According to IEC 61326-3-1 According to IEC 61000-6-2 According to IEC 60947-5-1

Product tags

Item	Unit Price	Unit Tax	Subtotal	Action
RLY3-OSSD100 SICK Safety controllers 1085343	848.00 (SAR)	127.20	975.20 (SAR)
			Shipping	0.00
			Total	975.20 (SAR)

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Voltage supply	Passive (no active voltage supply)
Power consumption (input circuits)	≤ 1.5 W (DC)

Dimensions (W x H x D)	18 mm x 124.6 mm x 85.5 mm
Weight	130 g
