Picture of QS-1/8-8-50 FESTO Push-in fitting 130676

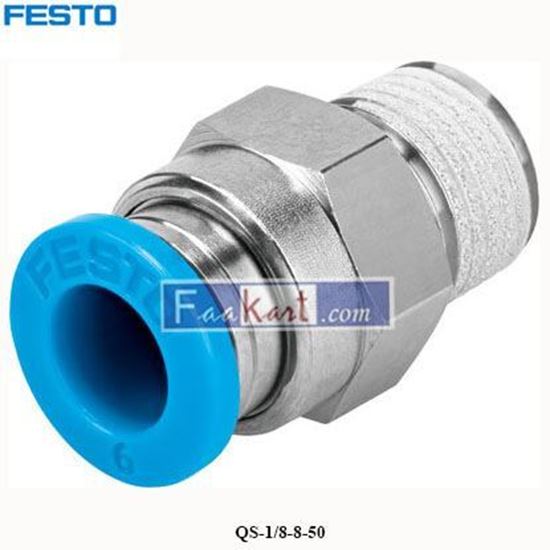

QS-1/8-8-50 FESTO Push-in fitting 130676

push-in fitting QS-1/8-8-50 male thread with external hexagon. Size=Standard, Nominal size=6 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=50
Be the first to review this product
Manufacturer: Festo
SKU: PCM1310
125.00 (SAR)
12.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Fitting Type Male Straight
Size  Standard
Nominal size  6 mm
Type of seal on screw-in stud  coating
Assembly position  Any
Container size  50
Design structure  Push/pull principle
Operating pressure complete temperature range  ‘-0.95 … 6 bar
Temperature dependent operating pressure  ‘-0.95 … 14 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-10 … 80 °C
Maritime classification  see certificate
Product weight  14 g
connection 1  Male thread R1/8
connection 2  For tubing outside diameter 8 mm
Colour of release ring  blue
Materials note  Conforms to RoHS
Material housing  BrassNickel plated
