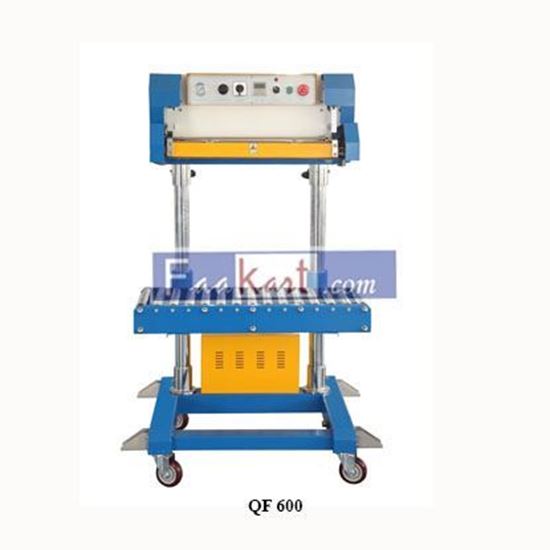

QF-600L is seal various plastic film bags and compound bags with max. sealing length of 600mm and max. carrying a load of 50kg. It adopts compressed air as a motive power with variable sealing pressure and reliable sealing quality. For a relatively thick bag, you can choose model QF -600L /S with a double heating function. According to special orders, the sealing length can be increased to 800mm, 1000mm.
MODEL |
QF-600L(/S) |
Voltage (V/Hz) |
AC 220/50 110/60 |
Sealing Power (W) |
500(800) |
Air Compressor(W) (Mpa) |
0.5(Equipped by User) |
Seal Length (mm) |
600、800、1000 |
Seal Width (mm) |
10 |
Distance from Sealing Center to Conveyor (mm) |
1155 |
Film Thickness(single layer)(mm) |
≤0.18 |
Max. Package Sealing load(mm) |
150-800 |
Max. Sealing Load(kg) |
50 |
Adjustable Angle of Pressing Head (°) |
20 |
External Dimensions(L×W×H) (mm) |
905×690×1430 |
Net Weight (kg) |
103 |
