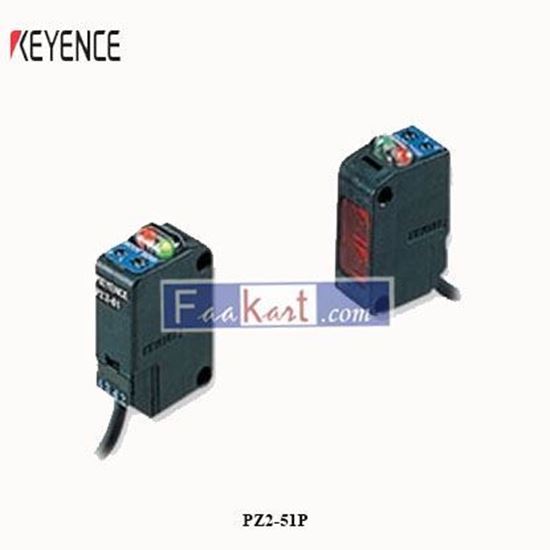

PZ2-51P KEYENCE Square Transmissive Cable Type

Model

PZ2-51P

Type

Thrubeam

Detection distance

7 m

Light source

Red LED

Detectable object

30 mm2 dia. min. opaque materials

Hysteresis(of detecting distance)

-

Sensitivity adjustment

1-turn trimmer (240°)

Response time

1.5 ms max.

Operation mode

LIGHT-ON/DARK-ON (switch-selectable)

Indicator lamp

Output and power*1: Red LED, Stable operation: Green LED

Controloutput

NPN or PNP: 100 mA (40 V) max., Residual voltage: 1 V max.

Protection circuit

Reversed polarity, overcurrent protection, surge absorber

Rating

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

Current consumption

Transmitter: 20 mA or less, Receiver: 25 mA or less

Environmental resistance

Enclosure rating

IP67

Ambient light

Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.

Ambient temperature

-20 to +55 °C (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s2, 6 times in each of the X, Y, and Z directions

Case material

Glass-fibre reinforced plastic

Accessories

Mounting bracket x 2, Mounting screws x 4, Plate nut x 2

Weight

Approx. 50 g (including 2-m connector cable)
