Products tagged with 'auxiliary contact'

QTY:1 New DILA-XHIC04 Auxiliary Contact 4-Poles

Eaton Auxiliary Contact - 1NC + 1NO, 2 Contact, Front Mount, 10 A dc, 4 A ac

Eaton Auxiliary Contact - 1NC + 1NO, 2 Contact, Front Mount, 4 A ac, 10 A dc

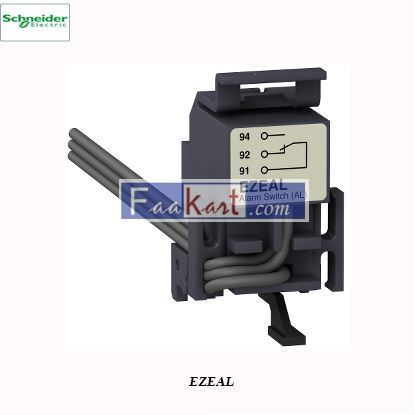

range of product EZC250 EZCV250 range EasyPact device short name AL product or component type Switch device application Alarm range compatibility EZC circuit breaker EZCV circuit breaker signal contacts composition 1 NO/NC Complementary auxiliary contacts type Standard [Ith] conventional free air thermal current 5 A [Ie] rated operational current AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC minimum load 10 mA at 24 V auxiliary connection terminal Lead wire

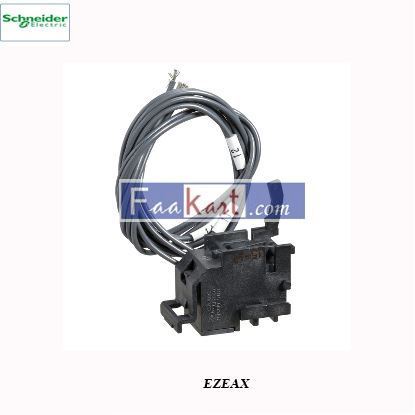

range of product EZC250 EZCV250 range EasyPact device short name AX product or component type Switch device application Signalling range compatibility EZC circuit breaker EZCV circuit breaker signal contacts composition 1 NO/NC Complementary auxiliary contacts type Standard [Ith] conventional free air thermal current 5 A [Ie] rated operational current AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC minimum load 10 mA at 24 V auxiliary connection terminal Lead wire

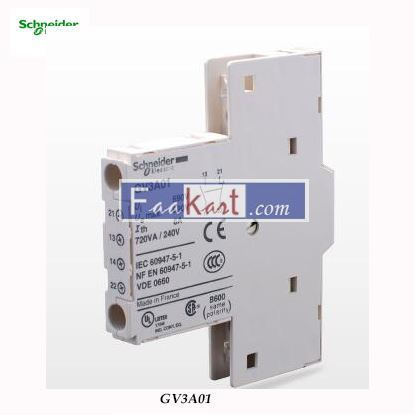

TeSys GV3 - auxiliary contact - 1 NO + 1 NC early-break
