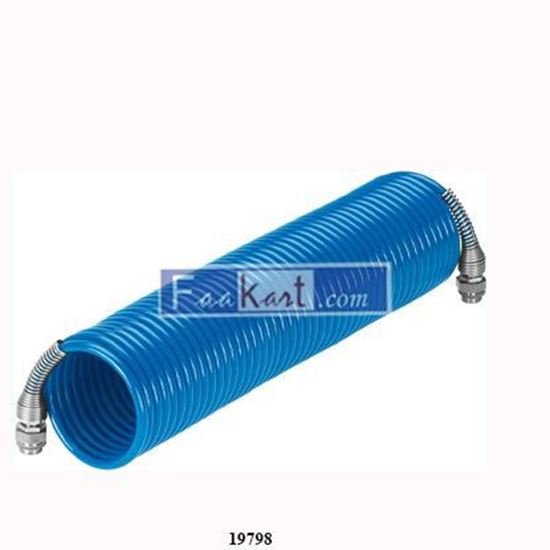

PPS-4-7,5-1/4-BL 19798 FESTO Spiral plastic tubing

PPS-4-7,5-1/4-BL 19798 FESTO Spiral plastic tubing
Manufacturer: Festo
SKU: SHA3524
530.00 (SAR)
435.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Data

  • Working length7.5 m
  • Outside diameter6.3 mm
  • Block length0.34 m
  • Inside diameter4.7 mm
  • Winding diameter75 mm
  • Number of turns44
  • Temperature-dependent operating pressure-0.95 bar ... 21.2 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-30 °C ... 80 °C
  • Nominal torque11 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight249 g
  • Pneumatic connection, port 1Male thread G1/4
  • Pneumatic connection, port 2Male thread G1/4
  • ColourBlue
  • Material connecting threadBrass
  • Note on materialsRoHS-compliant
  • Material buckling protectionSteel Galvanised
  • Material tubingPA12-P
