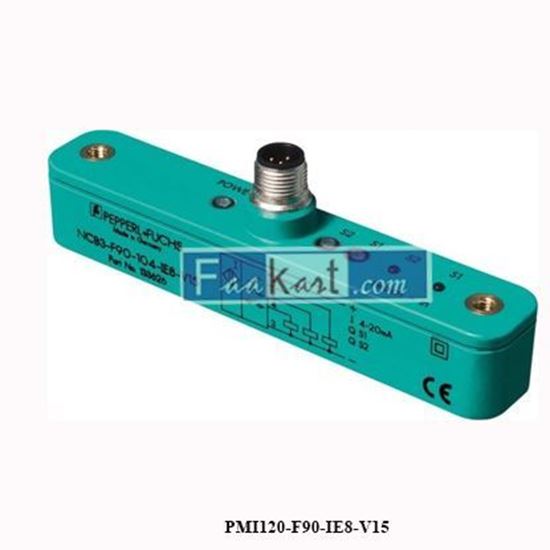

PMI120-F90-IE8-V15 PEPPERL+FUCHS Inductive positioning system

Analog output 4 mA ... 20 mA Adjustable switch points Measuring range 0 ... 120 mm

Manufacturer: Pepperl+Fuchs

SKU: NSRN949

Old price: 2,500.00 (SAR)

Price: 1,755.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

General specifications
Switching element function		Analog current output with PNP binary NO
Object distance		0.5 ... 3 mm , recommended: 2 mm
Measurement range		0 ... 120 mm
Linearity range		1 ... 119 mm
Nominal ratings
Operating voltage		18 ... 30 V DC
Reverse polarity protection		reverse polarity protected
Linearity error		within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm
Repeat accuracy		± 0.1 mm
Resolution		125 µm
Temperature drift		± 0.5 mm (-25 °C ... 70 °C)
No-load supply current		≤ 40 mA
Operating voltage indicator		LED green
Functional safety related parameters
MTTF_d		270 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Switching output
Output type		2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected
Operating current		≤ 100 mA
Switching window		± 1 mm
Switching hysteresis		0.4 mm
Voltage drop		≤ 3 V
Short-circuit protection		pulsing
Analog output
Output type		1 current output: 4 ... 20 mA
Load resistor		≤ 400 Ω
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007 IEC 60947-5-2:2007
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		5-pin, M12 x 1 connector
Degree of protection		IP67
Material
	Housing	ABS
	Target	mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
Dimensions
	Height	41 mm
	Width	23 mm
	Length	142 mm
