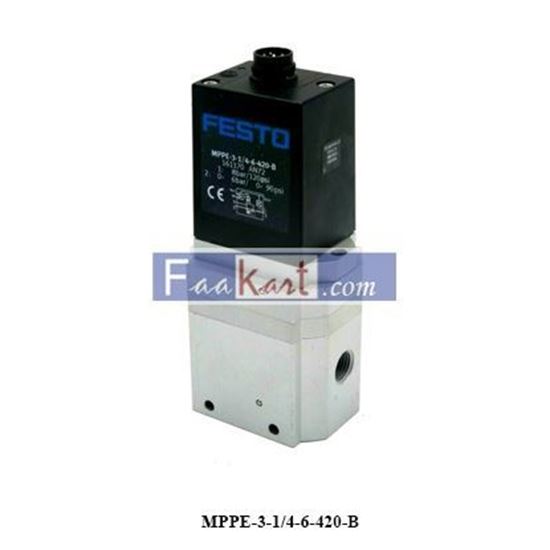

MPPE-3-1/4-6-420-B PRESSURE REGULATOR

Be the first to review this product

Manufacturer: Festo

SKU: SKU00700

Old price: 4,900.00 (SAR)

Price: 4,388.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Nominal size, supply7 mm
Nominal size, exhaust7 mm
Type of actuationElectric
Sealing principleSoft
Mounting positionoptional
DesignPiloted piston regulator
Short circuit current ratingFor all electrical connections
Safety instructionsSafety position MPPE-B: if the power supply cable is interrupted, output pressure is maintained unregulated.
Symbol00995303
Reverse polarity protectionFor all electrical connections
Valve function3-way proportional-pressure regulator, closed
Operating pressure≤0.8 MPa
Operating pressure≤8 bar
Pressure regulation range0 MPa ... 0.6 MPa
Pressure regulation range0 bar ... 6 bar
Inlet pressure 17 bar ... 8 bar
Inlet pressure 10.7 MPa ... 0.8 MPa
Max. pressure hysteresis0.004 MPa
Max. pressure hysteresis0.04 bar
Switching time off260 ms
Switching time on150 ms
Operational voltage range DC18 V ... 30 V
Reference voltage10 V
Residual ripple10 %
SETPOINT/ACTUAL valuesCurrent type 4-20 mA
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
ApprovalRCM trademark
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
CE marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature0 °C ... 60 °C
Degree of protectionIP65
Ambient temperature0 °C ... 50 °C
Product weight920 g
Electrical connection8-pin M16x0.75 Plugs To DIN 45326 Round design
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Note on materialsRoHS-compliant
Material housingWrought aluminium alloy
Material membraneNBR
