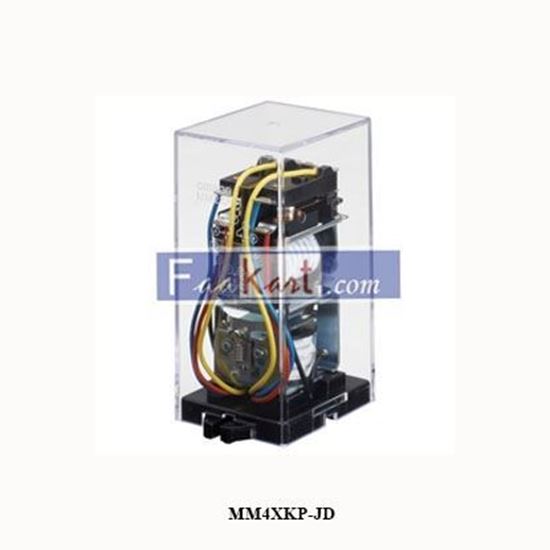

MM4XKP-JD DC100/110 OMRON General Purpose Relays GP Relay

A cost-effective industrial-use relay with low power consumption. [Features] ·type MM power relay with a mechanical lock latching system. ·mechanically holds the operations. · Quick operation due to pulse-transmitted electrical power. ·Wide operating temperature range from -10°C to +55°C. ·Models compliant with auxiliary power relays (JEC-174D) are also available. [Applications] ·Ideal for motor and control operation switching.
Manufacturer: Omron
SKU: NSRN1337
1,500.00 (SAR)
884.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Application Power Contact Configuration [Other] 2c2a
Latch function Available Terminal shape Socket / plug-in
Contact rated current (minimum value for AC and DC)(A) 5 Coil rated voltage (DC)(V) 100/110
Coil rated voltage (AC)(V) - Dimension height(mm) 123
Dimension width(mm) 72.5 Dimension depth(mm) 80.5
Contact mechanism Single Protective Structure In-Case Type
