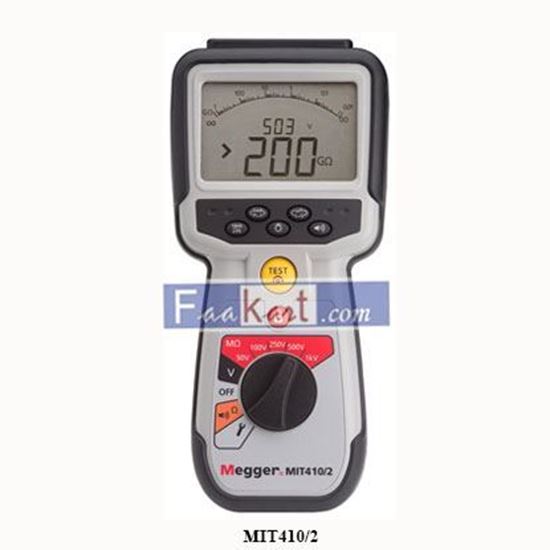

About this item

• Battery Type (VAC): 6 x AA alkaline or 6 x NiMH rechargeable
• Capacitance Accuracy: ±5.0% ±2 digit
• Capacitance Range: 100 pF to 10µF
• Compliance: CAT IV-600 V, CAT III-1000 V
• Continuity Accuracy: ±3% ±2 digits (0 to 100 Ω)

FEATURES INCLUDE:

■ Test voltages (New) - 50 V, 100 V, 250 V, 500 V and 1000 V.

■ Variable test voltage (New) - Adjustable test voltage from 10 V to 1000 V.

■ 2% test voltage accuracy - The output test voltage is maintained within the tolerance or -0% +2%

■ PASS/FAIL indication (New) – PASS or FAIL displayed depending on threshold voltage

■ Stabilised test voltage - The voltage is feedback controlled to ensure it remains within specification throughout the full test range

■ Test voltage display (New) - The actual test voltage is displayed on the smaller digital readout, with the measurement on the larger digital display.

■ Measurement range displayed (New) - The test range is displayed during selection

■ Measurement voltage display - The measurement voltage is displayed during the test

■ Analogue arc - The display also features an analogue arc to replicate the response of a moving coil display.

■ PI and DAR - Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) functions - Polarisation Index (PI): 10
