  • MIC+130/IU/TC Ultrasonic Proximity Sensor
Picture of MIC+130/IU/TC Ultrasonic Proximity Sensor

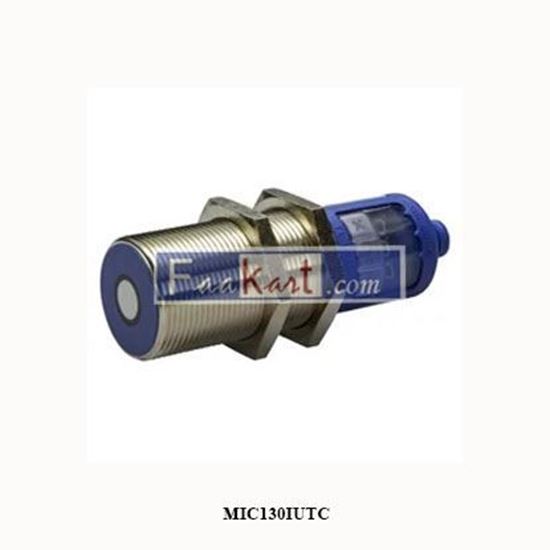

MIC+130/IU/TC Ultrasonic Proximity Sensor

MIC+130/IU/TC Microsonic sensor, ultrasonic Ultrasonic Proximity Sensor, MIC Series, M30 , 1.3 m, analog, 200 kHz, 9 to 30 Vdc
Be the first to review this product
SKU: NSRN1274
3,999.00 (SAR)
2,808.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

The MIC+130/IU/TC from Microsonic is a mic+ ultrasonic sensor with analogue output. This mic+ sensor embedded in M30 housing design covers a measuring range from 30mm to 8m with single analogue output with 4mA to 20mA and 0v to 10V detection range. Depending on the selected detection range, the internal resolution of the distance measuring is 0.18mm. All sensors are equipped with integrated temperature compensation. All settings are done with two push buttons and a three digit LED display. This Light emitting diodes (3 colour LEDs) indicate the switching status. The output functions are changeable from NOC to NCC. Sensors are adjustable manually using the numerical LED display or may be trained using Teach-in processes. Using the LinkControl adapter, all TouchControl and additional sensor parameter settings can be made by windows software.
  • Operating range from 200mm to 2000mm
  • Analogue distance measurements
  • Operating voltage range from 9VDC to 30VDC with reverse polarity protection
  • No load current consumption<= 80mA
  • 5pin M12 initiator plug connection
  • Means of measurement echo propagation time
  • Transducer frequency is 200KHz
  • Blind zone 200mm
  • IP67 rated
  • Operating temperature range from -25° C to 70°C
