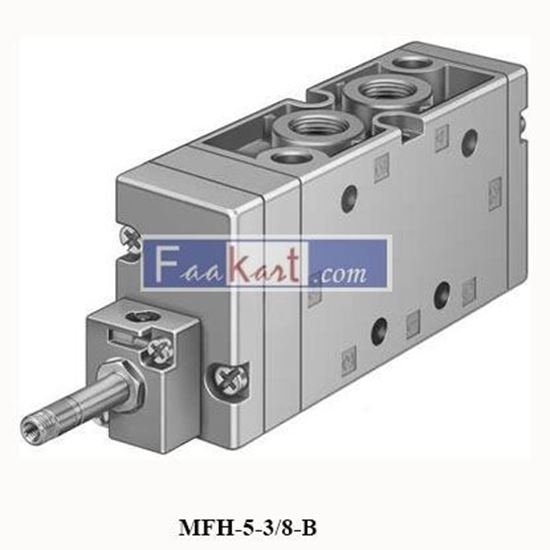

MFH-5-3/8-B FESTO Solenoid valve 19705

MFH-5-3/8-B FESTO Solenoid valve Weight 630 g / pcs

Manufacturer: Festo

SKU: MAI624

Old price: 1,240.00 (SAR)

Price: 1,168.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Valve function	5/2 monostable
Actuation type	Electrical
Build.width [mm]	40
Normal nominal flow [l/min]	2.000
Operating pressure [bar]	2.5 to 10
Construction set up	Piston pusher
Reset mode	Mechanical spring
Nominal width [mm]	12
Pitch dimension [mm]	41
Exhaust function	Can be throttled
Sealing principle	Soft
installation position	arbitrary
Hand assist actuation	tentative
Control type	pilot operated
Control air supply	Internal
Flow direction	Not reversible
Überdeckung	positive Überdeckung
Max. switching frequency [Hz]	3
Shifting time off [ms]	56
Shifting time on [ms]	20
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
Bearing temperature [°C]	-40 to 60
Medium temperature [°C]	-10 to 60
ambient temperature [°C]	-5 to 40
Product weight [g]	630
Fastening type	on PR strip With throughway bores Selectively:
Pneumatic connection 1	G3/8
Pneumatic connection 2	G3/8
Pneumatic connection 3	G3/8
Pneumatic connection 4	G3/8
Pneumatic connection 5	G3/8
Material information	RoHs compliant
Seals material	NBR
Housing material	Aluminium die casting
Max. positive test impulse at 0 signal [µs]	2.200
Max. negative test impulse for 1 signal [µs]	3.700
Exhaust control connection 84	M5
Electrical connection	Via f-coil, order separately

Further information on OT-FESTO010613
