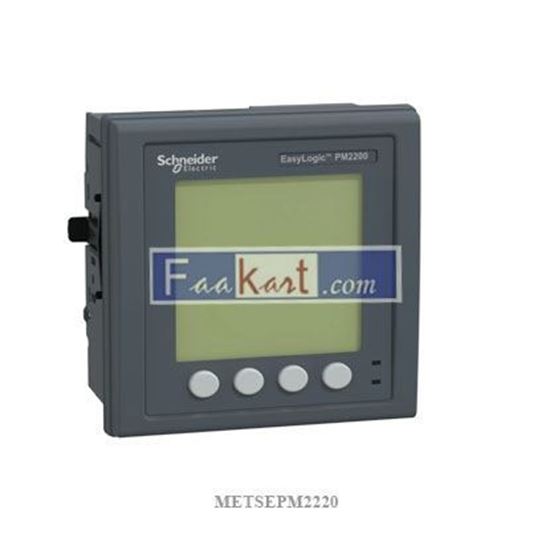

METSEPM2220 SCHNEIDER EasyLogic PM2220, Power & Energy meter, 15th harmonic, LCD, RS485, class 1

Description
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size and a backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0, complying with the IEC 62053-21 standard with a sampling rate of 64 samples per cycle. Able to measure all three vectors of power and energy, such as active, apparent, & reactive, beside voltages, current, frequency, and power factor. Plus the total harmonic distortion and individual harmonics up to the 15th harmonic order. The meter will function at either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V line to neutral AC or DC voltages. The rated current for this meter is either 1A or 5A. It supports up to 13 different types of wiring schemes under single-phase, two-phase, or three-phase configuration types. The range of measurement voltage between phases is 35 to 480 V from line to line AC at 45 to 65 Hz, while it is 20 to 277 V between line and neutral. It has an RS485 communication port over the Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm), and product weight 10.58 oz (300 g).
