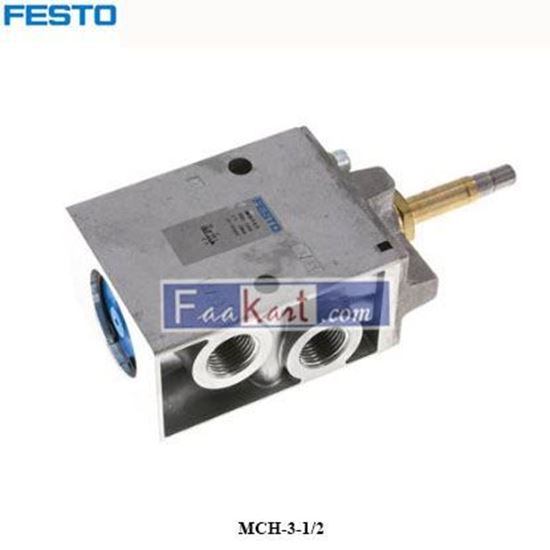

MCH-3-1/2 FESTO Air solenoid valve 9981

Manufacturer: Festo

SKU: PCM1143

Old price: 985.00 (SAR)

Price: 760.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Properties

Valve function	3/2 closed monostable
Actuation type	Electrical
Build.width [mm]	52,0
Normal nominal flow [l/min]	3.700
Operating pressure [bar]	1.5 to 10
Construction set up	Plate seat
Reset mode	Mechanical spring
Nominal width [mm]	14
Exhaust function	Can be throttled
Sealing principle	Soft
installation position	arbitrary
Control type	pilot operated
Flow direction	Not reversible
Überdeckung	negative Überdeckung
Shifting time off [ms]	54
Shifting time on [ms]	22
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
Bearing temperature [°C]	-20 to 60
Medium temperature [°C]	-10 to 60
ambient temperature [°C]	-5 to 40
Product weight [g]	1.115
Fastening type	With throughway bores Selectively: on terminal strip
Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2
Pneumatic connection 3	G1/2
Material information	RoHs compliant
Seals material	NBR
Housing material	Aluminium die casting
Pitch dimension [mm]	69
Hand assist actuation	Ratcheting
b-value	0.3
Protection category	IP65
Max. positive test impulse at 0 signal [µs]	2.200
Max. negative test impulse for 1 signal [µs]	3.700
Coil characteristic value	See solenoid coil, order separately
