Picture of M9F23103 Schneider Electric Miniature circuit breaker

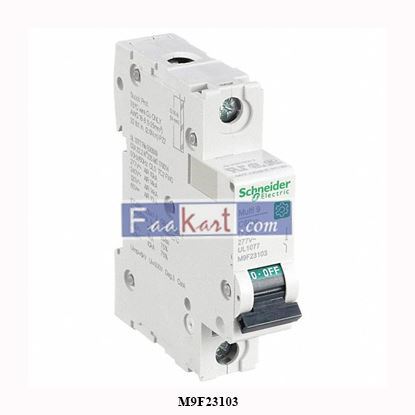

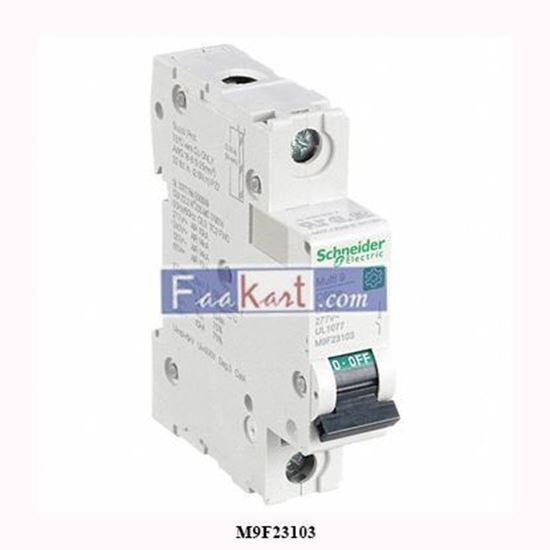

M9F23103 Schneider Electric Miniature circuit breaker

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, D curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)
Be the first to review this product
Manufacturer: Schneider
SKU: RELR22241018
288.00 (SAR)
145.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

This Multi9 C60SP is a low-voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 3A rated current, and a D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing and protecting people and equipment from electrical threats. This product protects from short circuits, earth leakage, and overload. This product is dedicated to original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240 VAC. The Ui-rated insulation voltage is 500 VAC. The Uimp-rated impulse withstand voltage is 6 kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9 mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
