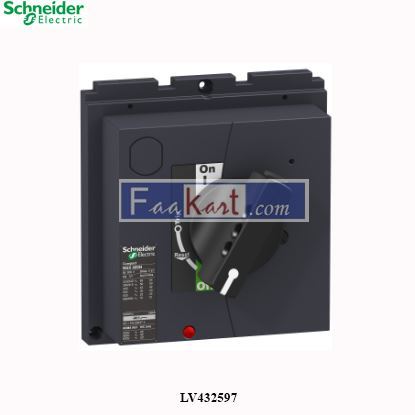

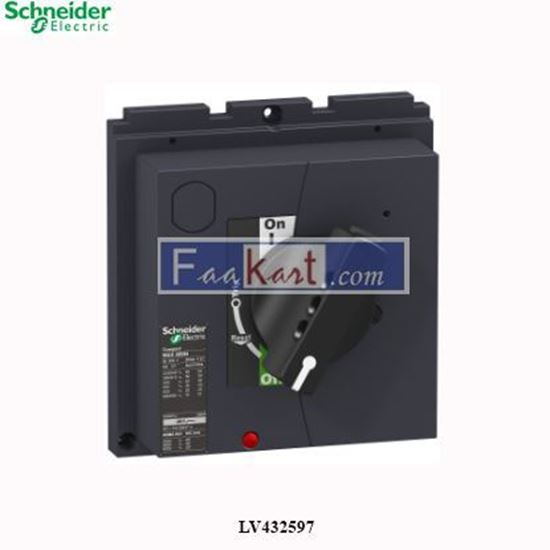

LV432597 Schneider Direct rotary handle, Compact

It is a direct rotary handle for Compact NSX 400/630, PowerPacT Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

SPECIFICATIONS

• Rotary Handle Mounting Location: front
• Range Of Product: ComPact NSX400...630
• Handle Front Plate Colour: black
• Rotary Handle Padlocking: 1 to 3 padlocks || padlock in OFF position
• Product Or Component Type: rotary handle
• Accessory / Separate Part Type: control accessories

• Complementary

  • Rotary Handle Mounting Style: direct
  • Range Compatibility: ComPact NSX400 || ComPact NSX630 || EasyPact CVS400 || EasyPact CVS630 || PowerPact Multistandard
  • Handle Colour: black
  • Ip Degree Of Protection: IP40
