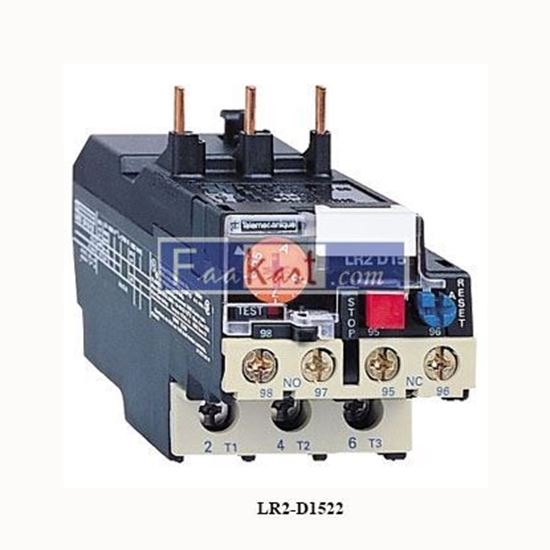

LR2-D1522 SCHNEIDER OVERLOAD RELAY

LR2D1522 DISCONTINUED BY MANUFACTURER OVERLOAD RELAY BIMETALLIC 17-25AMP 1-NC 1-NO

Be the first to review this product

Manufacturer: Schneider

SKU: NSRN021

Call for pricing

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Main
Range	TeSys
Product name	TeSys LRD
Product or component type	Thermal overload relay
Device short name	LRD
Relay application	Motor protection
Product compatibility	LC1D
Network type	AC
Thermal overload class	Class 20 conforming to IEC 60947-4-1
Thermal protection adjustment range	17…25 A
[Ui] rated insulation voltage	Power circuit: 1000 V conforming to IEC 60947-4-1

Complementary
Network frequency	50...60 Hz
Mounting support	Rail
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	5 A for signalling circuit
Permissible current	3 A at 120 V AC-15 for signalling circuit 0.95 A at 380 V AC-15 for signalling circuit 1.5 A at 240 V AC-15 for signalling circuit
[Ue] rated operational voltage	1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating	4 A gG for signalling circuit 4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Phase failure sensitivity	Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1
Control type	Red push-button: stop Blue push-button: reset
Temperature compensation	-20…60 °C
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals
height	100 mm
Width	75 mm
Depth	121 mm
