Picture of LC1D183BD Schneider Electric TeSys D LC1D Contactor

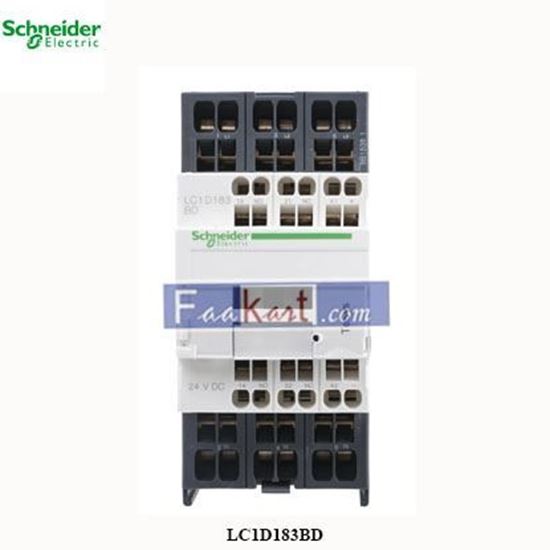

LC1D183BD Schneider Electric TeSys D LC1D Contactor

Schneider Electric TeSys D LC1D Contactor, 24 V dc Coil, 3 Pole, 18 A, 7.5 kW, 3NO
Be the first to review this product
Manufacturer: Schneider
SKU: PCM1542
545.00 (SAR)
421.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

  • IP degree of protection: IP20 front face conforming to IEC 60529
  • Standards: CSA C22.2 No 14
  • Device short name: LC1D
  • Width: 45 mm
  • Height: 99 mm



  • Description: Contactor
  • IP degree of protection: IP20 front face conforming to IEC 60529
  • Standards: CSA C22.2 No 14
  • Device short name: LC1D
  • Width: 45 mm
  • Height: 99 mm
  • Depth: 101 mm
  • Protective treatment: TH conforming to IEC 60068-2-30
  • [Ui] rated insulation voltage: Power circuit: 690 V conforming to IEC 60947-4-1
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
  • Operating altitude: 3000 m without
  • Mechanical durability: 30 Mcycles
  • Connections - terminals: Control circuit: spring terminals 1 cable(s) 2.5 mmflexible without cable end
  • Range: TeSys
  • Mounting support: Plate
  • [Ith] conventional free air thermal current: 25 A (at 60 C) for power circuit
  • Product name: TeSys D
  • [Uc] control circuit voltage: 24 V DC
  • Electrical durability: 1.65 Mcycles 18 A AC-3 at Ue <= 440 V
  • Insulation resistance: > 10 MOhm for signalling circuit
  • motor power kW: 4 kW at 220...230 V AC 50/60 Hz (AC-3)
  • [Ie] rated operational current: 18 A (at <60 C) at <= 440 V AC AC-3 for power circuit
  • Control circuit voltage limits: Drop-out: 0.1...0.25 Uc DC (at 60 C)
  • Poles description: 3P
  • Overvoltage category: III
  • Operating time: 53.55...72.45 ms closing
  • Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • Control circuit type: DC standard
  • Product or component type: Contactor
  • Contactor application: Resistive load
  • Utilisation category: AC-4
  • Power pole contact composition: 3 NO
  • [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
  • motor power HP (UL / CSA): 1 hp at 115 V AC 50/60 Hz for 1 phase motors
  • Auxiliary contact composition: 1 NO + 1 NC
  • Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • Rated breaking capacity: 300 A at 440 V for power circuit conforming to IEC 60947
  • [Icw] rated short-time withstand current: 145 A 40 C - 10 s for power circuit
  • Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit
  • Power dissipation per pole: 2.5 W AC-1
  • Safety cover: With
  • Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • Maximum operating rate: 3600 cyc/h 60 C
  • Coil technology: With integral suppression device
  • Time constant: 28 ms
  • inrush power in W: 5.4 W (at 20 C)
  • hold-in power consumption in W: 5.4 W at 20 C
  • Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
  • Signalling circuit frequency: 25...400 Hz
  • Minimum switching current: 5 mA for signalling circuit
  • Minimum switching voltage: 17 V for signalling circuit
  • Non-overlap time: 1.5 ms on de-energisation between NC and NO contact
  • Pollution degree: 3
  • Ambient air temperature for operation: -560 C
  • Ambient air temperature for storage: -6080 C
  • Permissible ambient air temperature around the device: -4070 C at Uc
  • Fire resistance: 850 C conforming to IEC 60695-2-1
  • Flame retardance: V1 conforming to UL 94
  • Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz
  • Net weight: 0.49 kg
