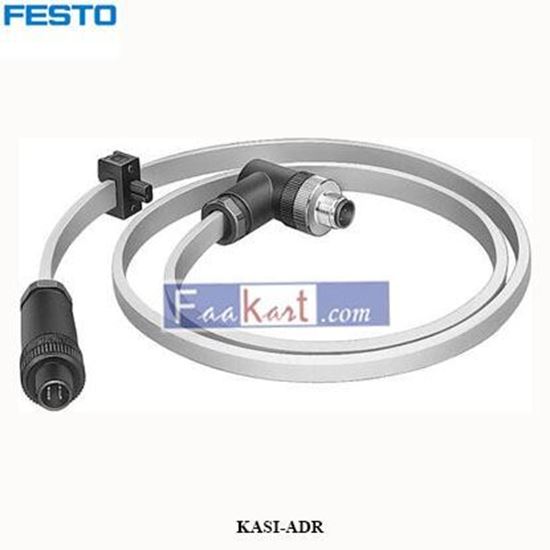

Operating voltage range DC [V] |
0 to 48 |
Operating voltage range AC [V] |
0 to 48 |
Protection category |
IP20 |
ambient temperature [°C] |
-40 to 85 |
Ambient temperature for moving cable placements [°C] |
-25 to 80 |
Cable sleeve material |
Rubber mixture |
Cable shield colour |
yellow |
Report |
As interface |
Construction set up |
T-distributor with cable both sides |
Distributor type |
2 to 1 |
Additional functions |
Connection of the programming device to a AS-Interface component via AS-I flat cable |
Line designation |
Without sign holder |
Electrical connection 1, function |
Field device screen |
Electrical connection 1, design |
Angular |
Electrical connection 1, connection type |
socket / container / …. |
Electrical connection 1, cable output |
Angled |
Electrical connection 1, connection technology |
As interface |
Electrical connection 1, number of pins / wires |
2 |
Electrical connection 1, occupied pin / wire |
2 |
Electrical connection 1, fastening type |
plugged |
Electrical connection 2, function |
Field device screen |
Electrical connection 2, design |
round |
Electrical connection 2, connection type |
socket / container / …. |
Electrical connection 2, cable output |
straight |
Electrical connection 2, connection technology |
M12x1 A coded to EN 61076-2-101 |
Electrical connection 2, number of pins / wires |
4 |
Electrical connection 2, occupied pin / wire |
2 |
Electrical connection 2, fastening type |
plugged |
Electrical connection 3, function |
Control screen |
Electrical connection 3, design |
round |
Electrical connection 3, connection type |
Plug |
Electrical connection 3, cable output |
Angled |
Electrical connection 3, connection technology |
M12x1 A coded to EN 61076-2-101 |
Electrical connection 3, number of pins / wires |
4 |
Electrical connection 3, occupied pin / wire |
2 |
Electrical connection 3, fastening type |
plugged |
Current carrying capacity at 40°C [A] |
3 |
Surge voltage strength [kV] |
0,5 |
Cable length 1 [MTR] |
2,4 |
Cable length 2 [MTR] |
0,1 |
Line properties |
Standard |
Test conditions line |
Test conditions on request |
Cable set up |
2x1,5 |
Conductor - nominal cross-section [mm²] |
1,5 |
Information about protection category |
In mounted condition |
Material information |
RoHs compliant |
Degree of contamination |
2 |
Housing colour |
black |
