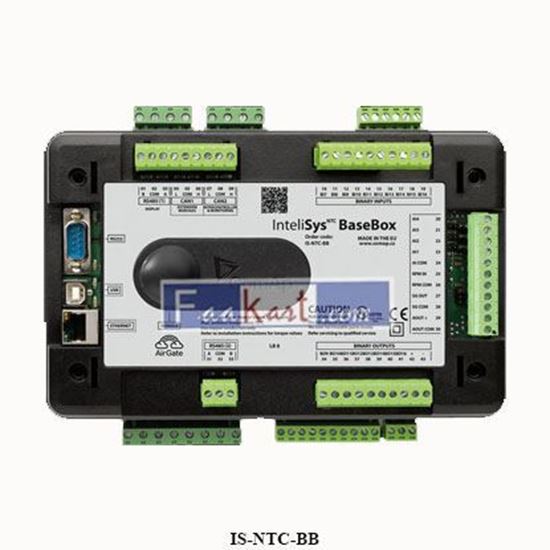

IS-NTC-BB InteliSys NTC BaseBox

InteliSys NTC BaseBox is a controller with a broad range of communication and PLC capabilities for single or multiple gen-sets operating in stand-by or parallel mode. Intended primarily for CHP and switchgear applications, it will help you with secure on-site and remote monitoring of various installations such micro CHP, datacentres, hospitals or banks.

The InteliSys NTC Basebox offers:


• AirGate for easy connection to your equipment remotely, without worrying about your asset’s IP address
• Built-in PLC interpreter helping with the use of ComAp's free PLC Editor
• User-defined protections and setpoints on top of default protection
• Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
• More precise measuring with a True Root Mean Square measurement feature
• Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
• Compatible load/Var sharing and power management with other ComAp solutions
• DROOP regulation allowing load and Var sharing when the inter-controller’s communication is lost
• Start-up synchronisation to minimise the paralleling start sequence time and get the gen-set system up and running with minimum possible delay
• Dynamic spinning reserve preventing supply drops in hybrid installations with PVs
• Faster and cost-effective operations with signal sharing over a CAN bus across a group of control units
• Possibility to have a mains application in a gen-set controller with firmware upload functions
• Event-based history for fast and easy troubleshooting
• Automatic Mains Failure that ensures automatic start of gen-sets and minimises downtime
• Peak shaving for limiting the import from the mains (e.g. due to higher prices)
• Load shedding ensuring the most important loads are running even when there is a lack of power
• Compatible with the following remote displays:
  • InteliVision 5
  • InteliVision 8
  • InteliVision 12Touch
