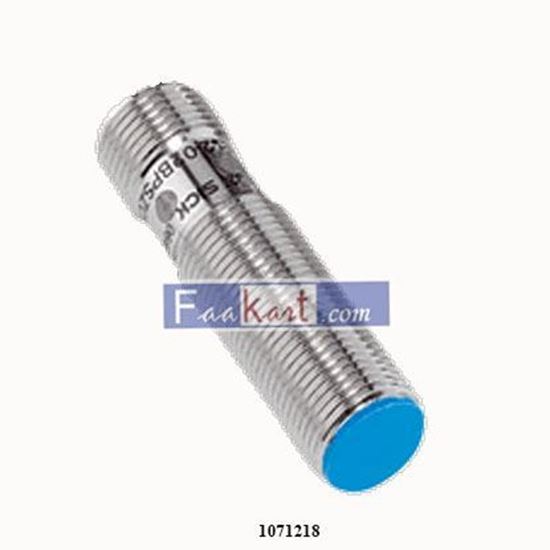

IME12-06BPSZC0K SICK Inductive proximity sensors IME 1071218

IME12-06BPSZC0K SICK Inductive proximity sensors IME

Manufacturer: Sick

SKU: PCM1087

Old price: 189.00 (SAR)

Price: 117.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Features

Housing	Cylindrical thread design
Housing	Short-body
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	6 mm
Safe sensing range Sa	4.86 mm
Installation type	Quasi-flush
Switching frequency	800 Hz
Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP67 1)
Special features	Triple sensing range
Items supplied	Mounting nut, brass, nickel-plated (2x)

Mechanics/electronics

Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V 1)
Time delay before availability	≤ 50 ms
Hysteresis	1 % ... 15 %
Reproducibility	≤ 5 % 2) 3)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
No load current	≤ 10 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature	–25 °C ... +75 °C
Ambient temperature, storage	–25 °C ... +75 °C
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	46 mm
Thread length	29 mm
Tightening torque, max.	≤ 12 Nm
UL File No.	NRKH.E181493

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.75
Aluminum (Al)	Approx. 0.52
Copper (Cu)	Approx. 0.45
Brass (Br)	Approx. 0.54

Product tags

Item	Unit Price	Unit Tax	Subtotal	Action
IME12-06BPSZC0K SICK Inductive proximity sensors IME 1071218	117.00 (SAR)	17.55	134.55 (SAR)
			Shipping	0.00
			Total	134.55 (SAR)

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Remark	Associated graphic see "Installation"
A	6 mm
B	25 mm
C	12 mm
D	18 mm
E	2 mm
F	60 mm

MTTFD	1,735 years
DCavg	0 %
