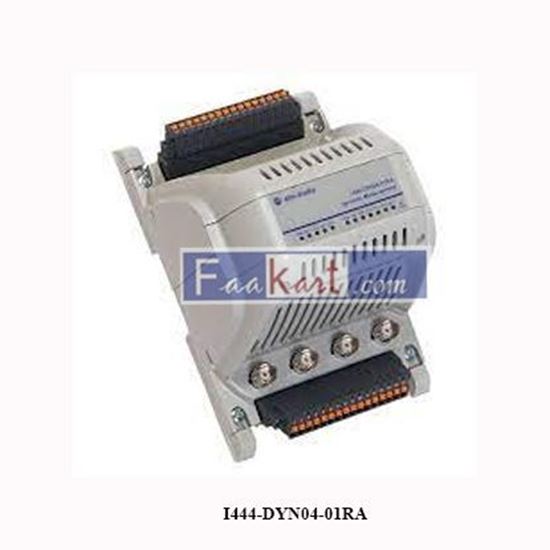

I444-DYN04-01RA ALLEN BRADLEY Dynamic Measurement Module

Dynamic Measurement Module,4 Dynamic Inputs,2 TTL Speed Inputs,1 Relay, 2 Port EtherNet/IP (DLR), Synchronous or Asynchronous Dynamic Measurements, Position Measurements.Use with 1444 TB A Base and DYN RPC set.

Be the first to review this product

Manufacturer: Allen-Bradley

SKU: NSRN545

0.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Technical Specifications

Electrical

Number of sensor inputs for IEPE sensors	4
Number of indicator outputs	16
Type of electric connection	Spring clamp connection
Ethernet	Yes
Voltage type of supply voltage	DC
Supply voltage DC	18 V
Suitable for bus connection	Yes
Model	Basic device
Supply voltage	32V DC
Conductor type	Copper
Wire type	Shielded on signal connections, Only Shielded on Ethernet ports, Unshielded on power and relay ports

Construction

Number of rotational speed inputs	2
Type of fastening	DIN rail (top hat rail)
Depth	Without terminal base: 154 mm (6.06 inch)
Height	Without terminal base: 106 mm (4.17 inch)
Width	Without terminal base: 102 mm (4.02 inch)
Modular expandable	Yes
Enclosure type rating	None (open-style)

Environmental

Surrounding air temperature, max	70 °C
Operating temperature	-25 °C
Emissions	IEC 61000-6-4
Vibration	2.0 G @ 10…500 Hz
Shock	Operating: 15 G
EFT/B immunity	±2 kV at 5 kHz on unshielded power ports, ±2 kV at 5 kHz on shielded signal ports, ±2 kV at 5 kHz on shielded Ethernet ports, ±3 kV at 5 kHz on unshielded relay ports
Surge transient immunity	±1 kV line-line(DM) and ±2 kV line-earth(CM) on unshielded power and relay ports, ±2 kV line-earth(CM) on shielded signal ports, ±2 kV line-earth(CM) on shielded Ethernet ports
Radiated RF immunity	10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 1 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Conductor/insulation temperature rating, min	85 °C
Operating temperature (spring type only), max	105 °C
Operating temperature (screw type only), max	115 °C
Nonoperating temperature	-40 °C
Relative humidity	5...95% noncondensing
ESD immunity	6 kV contact discharges, 8 kV air discharges
Conducted RF immunity	10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz

Certification

North American temperature code	T4
With approval according to UL	Yes
IEC temperature code	T4

Relay

Rated current, max	8 A AC
Rated voltage, max	250V AC
Inductive load	5 A @ 250V AC
Switching capacity, max	90 W DC @ inductive load
Resistive load	8 A @ 250V AC
Rated carry current	8 A
Number of relays	1
Electrical life cycles, min	50000
Mechanical life operations, min	10000000
Permissible load, min	10 mA @ 5V DC
Releasing time, max	5 ms @ rated voltage
Operating time, max	15 ms @ rated voltage
Contact material	Gold plated @ surface material
Contact arrangement	Single pole double throw (SPDT) change-over contact
