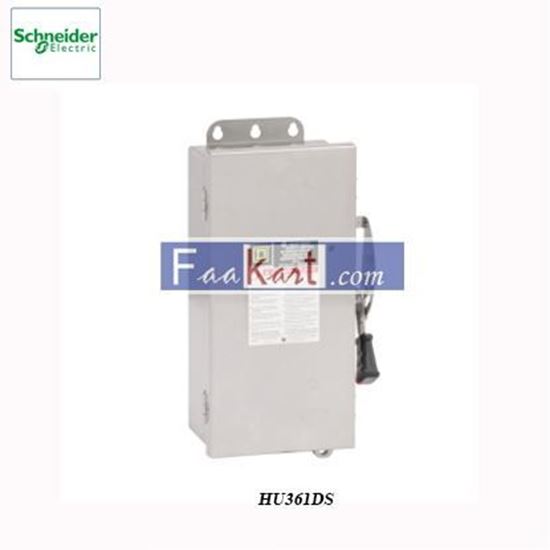

HU361DS SWITCH NONFUSIBLE HD 30A 3P STAINLESS

Main Product Single Throw Safety Switch Current Rating 30 A Certifications UL listed file E2875 Enclosure Rating NEMA 4/4X/5 stainless steel 304 Factory Installed Neutral None Disconnect Type Non-fusible disconnect Short Circuit Current Rating 200 kA maximum Mounting Type Surface Number of Poles 3 Electrical Connection Lugs Duty Rating Heavy duty Voltage Rating 600 V AC/DC Wire Size AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper Complementary width 8.67 in (220.22 mm) height 14.93 in (379.22 mm) depth 5.11 in (129.79 mm) tightening torque 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) AWG 6) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) AWG 8) 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) AWG 14...AWG 10)

Be the first to review this product

Manufacturer: Schneider

SKU: GND-00794

Vendor: MNPC

Old price: 2,269.00 (SAR)

Price: 1,588.00 (SAR)
