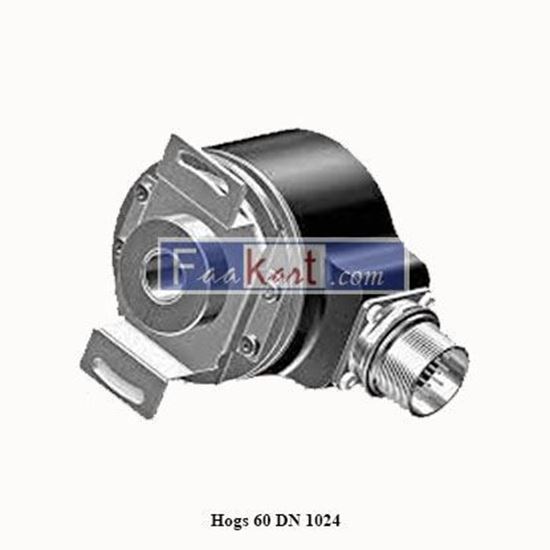

Picture of Hogs 60 DN 1024 Hubner Sine Digital Speedometer

Hogs 60 DN 1024 Hubner Sine Digital Speedometer

Blind hollow shaft ø8 mm, ø10 mm and ø12 mm Blind hollow shaft ø8...12 mm Optical sensing method Compact, robust housing Max. 10000 pulses per revolution Output stage HTL or TTL Output stage TTL with regulator UB 9...26 VDC Very high resistance to shock High protection IP 65
Be the first to review this product
SKU: NSRN893
5,987.00 (SAR)
5,207.00 (SAR)
GET A QUOTE FOR THIS

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Voltage supply
  • 9...26 VDC
  • 5 VDC ±5 %
Consumption w/o load
  • ≤100 mA
Pulses per revolution
  • 200 … 10000
Phase shift
  • 90 ° ±8°
Duty cycle
  • 46…54 %
Reference signal
  • Zero pulse, width 90°
Sensing method
  • Optical
Output frequency
  • ≤250 kHz
Output signals
  • K1, K2, K0 + inverted
Output stages
  • HTL
  • TTL/RS422
Interference immunity
  • EN 61000-6-2
Emitted interference
  • EN 61000-6-3
Approval
  • CE
  • UL approval / E217823
Technical data - mechanical design
Size (flange)
  • ø58 mm
Shaft type
  • ø8...12 mm (blind hollow shaft)
Admitted shaft load
  • ≤30 N axial
  • ≤40 N radial
Protection EN 60529
  • IP 65
Operating speed
  • ≤12000 rpm (mechanical)
Operating torque typ.
  • 1 Ncm
Rotor moment of inertia
  • 22 gcm²
Material
  • Housing: aluminium die-cast
  • Shaft: stainless steel
Operating temperature
  • -30...+85 °C
Resistance
  • IEC 60068-2-6
  • Vibration 10 g, 10-2000 Hz
  • IEC 60068-2-27
  • Shock 300 g, 6 ms
Explosion protection
  • II 3 G Ex ec IIC T4 Gc (gas)
  • II 3 D Ex tc IIIC T135°C Dc (dust)
  • (only with option ATEX)
Connection
  • Flange connector M23, 12-pin
  • Mating connector
  • Connecting cable (option)
Weight approx.
  • 450 g
