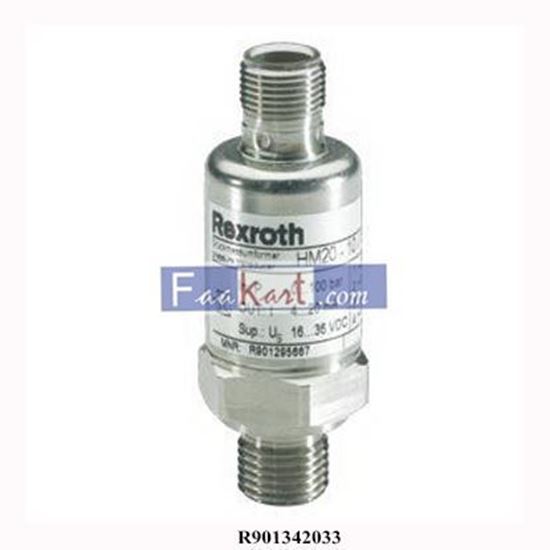

HM20-2X/400-C-K35 REXROTH R901342033 PRESSURE TRANSMITTER

Features

• Marine approval DNV-GL for all variants with current output
• Wide operating temperature range -40 to 185°F (–40 to 85 °C)
• Excellent non-repeatability < 0.05 %
• Accuracy class 0.5
• Operational safety due to high bursting pressure, reversed polarity, overvoltage and short-circuit protection
• Components that are in contact with the media are made of stainless steel
• Sensor with thin film measuring cell
• 8 measurement ranges up to 9137 psi (630 bar)
• Measuring pressures in hydraulic systems

• Tech Specifications

  Weight	50 grams
  Protection Class	IP65/IP67 with mating connector correctly mounted and locked
  Operating Voltage	18-36 VDC
  Throttle Element	Without
  Connector	4-pole, M12x1
  Pressure Connection	G1/4
  Pressure Media	HL, HLP, HFC, Nitrogen (maximum of 300 bar is admissible)
  Current Output	4 to 20 mA
  Pressure Range	5802 psi (400 bar)
  Weight:	0.07kg
  Dimensions:	22 mm Width x 65 mm Height
  Temperature Rating:	-20 to 80 deg C
  Pressure Rating:	400 bar
  Life Cycle:	40000 hr
  Polarity:	Reverse
  Material:	CrNi Steel 1.4404 Housing, CrNi Steel 1.4305 Throttle and NBR Seal
  Voltage Rating:	16 - 36VDC
  Current Output:	4 - 20mA
  Electrical Connection:	4 Pin M12 Connector at Housing
  Process Connection:	G1/4A Male Thread
  Accuracy:	< 0.5%
  Fluid Type:	HL, HLP, HFC
  Series:	HM 20
